Looking for a reliable, sealed connector for demanding electrical installations?
Discover the KON20 3PIN – an advanced junction box designed for maximum protection and ease of installation.
Screwless Quick Connection
Thanks to its innovative design, this connector enables quick and secure wire connections – without the need for tools. This is convenient, time-saving, and guaranteed durability.
Highest Ingress Protection – IP68
The connector provides complete protection against water, dust, and dirt, making it ideal for outdoor applications and harsh environments.
Safety and Quality
Housing: Durable PA66
Seal: Durable silicone rubber
Terminals: Copper alloy for excellent conductivity
Flammability Class: V0 - Fire Resistance
Technical Data:
Number of Pins: 3 (3P)
Maximum Voltage: 450V
Wire Cross-Section: 0.5 - 2.5 mm²
Cable Type: Round
Outer Cable Diameter: 5 - 9 mm
Operating Temperature Range: -40°C to +105°C
Protection Rating: IP68
Warranty: 3 Years
Applications:
Garden and Outdoor Electrical Installations
LED Lighting
Irrigation Systems
Industry and Automation
Areas with High Humidity
KON20 3P
1953 Items
No customer reviews for the moment.
error
Your review appreciation cannot be sent
feedback
Report comment
Are you sure that you want to report this comment?
check_circle
Report sent
Your report has been submitted and will be considered by a moderator.
error
Your report cannot be sent
Write your review
check_circle
Review sent
Your comment has been submitted and will be available once approved by a moderator.
Zasilacz LED DC 50W 12V VPS LP 760mA
Sterownik do zabudowy:
Zasilacz elektroniczny AC/DC z wyjściem napięciowym, przeznaczony do instalacji zgodnych ze standardami zastosowań oświetleniowych.
Niezależny sterownik IP20, do użytku wewnątrz...
MiBoxer WL-SW1 Intelligent wall switch
WiFi + 2.4 GHz RF
MiBoxer WL-SW1 is a modern intelligent light switch that combines WiFi and 2.4 GHz RF control, providing full control over lighting. It can function as a traditional touch switch, and...
TCI DC 70W 24V K3 70W 24V 122180
Cechy:
Elektroniczny sterownik AC/DC z napięciem wyjściowym, przeznaczony do instalacji zgodnych z normami zastosowań oświetleniowych.
Niezależny sterownik IP20, do użytku wewnątrz pomieszczeń.
Ochrona klasy...
MiBoxer B2 – Naścienny pilot LED CCT
4-strefowy 2.4GHz Dotykowy panel
MiBoxer B2 to nowoczesny, naścienny pilot dotykowy do sterowania oświetleniem LED CCT (biała barwa: ciepła ↔ zimna). Obsługuje 4 strefy, działa bezprzewodowo w paśmie...
Taśma LED Damik rolka 5m
to doskonały wybór do podświetleń sufitów podwieszanych, mebli, witryn, luster czy schodów. Jej wysoka wydajność świetlna i estetyczny wygląd sprawiają, że znajdzie zastosowanie zarówno w nowoczesnych aranżacjach,...
MiBoxer ZB-BOX3 Zigbee 3.0 bramka Wi-Fi
Integracja Smart Home | Kompatybilna z Tuya / Alexa / Google / Home Assistant
Rozbuduj swój inteligentny dom i zyskaj pełną kontrolę nad oświetleniem LED!
MiBoxer ZB-BOX3 to zaawansowana bramka Zigbee...
DAMIK Finch 360° PIR Motion Sensor 2000W Black with White Eye
Surface-mounted ceiling
The DAMIK Finch 360° motion sensor is a reliable ceiling-mounted device that automatically controls lighting or other connected devices based on detected motion...
DAMIK Finch 360° PIR Motion Sensor 2000W Black with White Eye
Surface-mounted ceiling
The DAMIK Finch 360° motion sensor is a reliable ceiling-mounted device that automatically controls lighting or other connected devices based on detected motion...
Merrytek MC119S 5.8 GHz Microwave Motion Sensor + Light Sensor
The Merrytek MC119S sensor is a precise automatic lighting control device. Using microwaves (5.8 GHz) and a daylight threshold adjustment, it ensures that lights are turned on...
Urządzenie Ochrony Przed Przepięciami
DMK zostało zaprojektowane w celu ochrony urządzeń elektrycznych przed przepięciami i skokami napięcia. Charakteryzuje się niskimi pozostałościami oraz szybkim czasem reakcji, co zapewnia bezpieczeństwo...
Czujnik ruchu PIR Merrytek MSA059D IR DALI2.0
Czujnik ruchu PIR MSA059D IR to urządzenie o wysokim montażu z funkcją wykrywania światła dziennego oraz wyjściem DALI2.0. Dzięki unikalnemu algorytmowi firmy Merrytek, czujnik precyzyjnie...
DAMIK złączka do taśmy LED COB 8mm
Strip to Wire | Mono | 2 pin | przewód 15 cm | IP20 | 3–24V | 5,5A
Złączka DAMIK typu strip-to-wire to szybkie i wygodne rozwiązanie do podłączania jednokolorowych taśm LED COB o szerokości 8 mm. Dzięki...
MiBoxer PUSH1-3 In-wall Dimming Module
PUSH, 3 Zones, 2.4 GHz
The MiBoxer PUSH1-3 is a modern in-wall dimming module that allows for convenient control of LED lighting in the MiBoxer/Mi-Light 2.4G system. Mounted in a junction box, it allows you...
DAMIK Dove 360° PIR Motion Sensor 2000W Black
Surface-Mounted Ceiling
The DAMIK Dove 360° motion sensor is a high-quality PIR detector designed for ceiling mounting. It automatically controls lighting or other connected devices based on detected...
MiBoxer PIR1-RF Bezprzewodowy czujnik ruchu PIR
2.4GHz | Automatyka oświetlenia
MiBoxer PIR1-RF to kompaktowy, bezprzewodowy czujnik ruchu działający w paśmie 2.4GHz, zaprojektowany do współpracy z kontrolerami i odbiornikami...
Pilot MiBoxer FUT096-B RGBW
4-strefowy | Sterowanie jasnością i kolorem
Bezprzewodowy pilot MiBoxer FUT096-B to nowoczesny kontroler do sterowania oświetleniem LED RGBW.
Umożliwia wygodne zarządzanie nawet 4 niezależnymi strefami światła –...
MiBoxer C6 – Remote Control for SPI LED Strips
The MiBoxer C6 remote control is a modern device designed to control digital SPI LED strips. It allows you to conveniently select colors, dynamic modes, and adjust speed and brightness, providing...

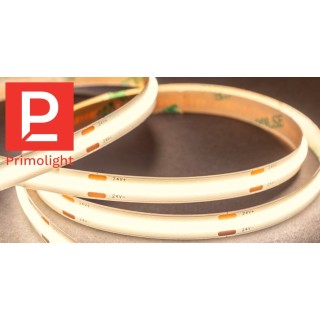

Primolight COB LED Strip 12V 10W/m 3000K 1pc = 1m
