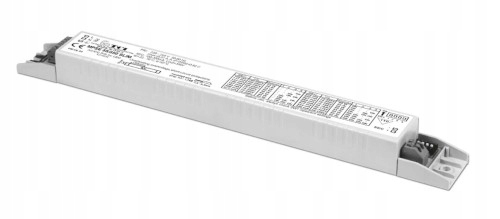

MPSE 40/350 SLIM LED Power Supply 127527
LED power supply:
- constant current,
- current regulation via DIP switch.
Technical parameters:
- Power: 6 / 40 W
- Current: 200 – 350 mA (constant)
- Output voltage: 20 / 120 V
- Power supply voltage: 220 / 240 V AC (198 / 264 V)
- DC voltage: 176 / 276 V
- Frequency: 50 – 60 Hz
- Power Factor (λ): 0.95 at load above 19 W
- Efficiency: > 92%
- Output ripple: ≤ 3%
- ITHD: ≤ 15%
- Starting current: 45 A (100 µsec)
- Housing: IP20
- Maximum quantity for CB B16A: 30 pcs.
Protection:
- Short circuit protection
- Surge protection
- Overload protection
- Thermal protection: C.5.a
Certificates:
EN 55015, EN 60598-2-22, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384
