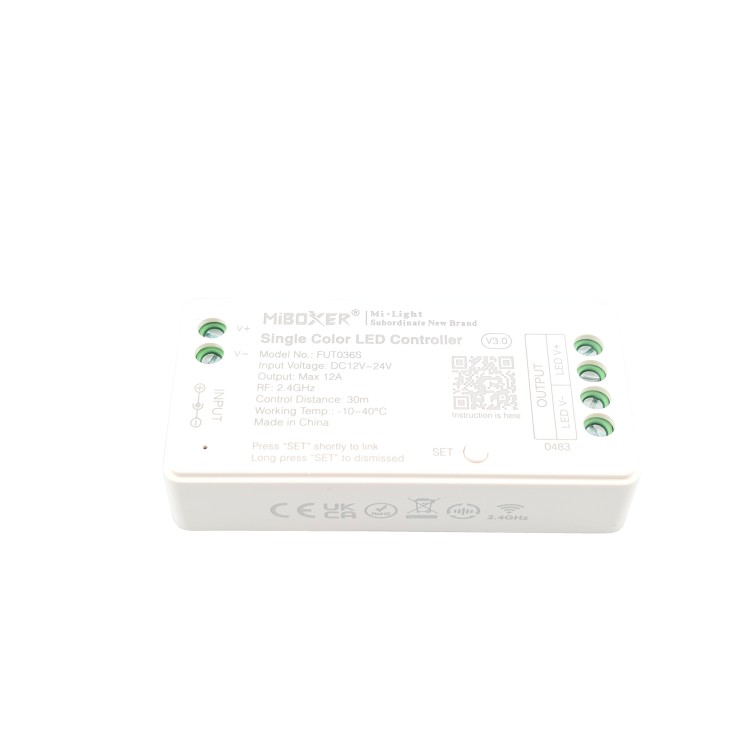

The MiBoxer FUT036S is a single-color (mono) LED controller operating in the 2.4GHz RF standard, enabling smooth brightness adjustment and easy operation of LED lighting. The controller works with MiBoxer remote controls and panels, allowing for convenient lighting control in homes, offices, or commercial spaces.
The device features an automatic signal transmission (Auto-Transmit) function, allowing for easy expansion of the installation with additional modules without losing control range.
It supports 12–24V DC and a maximum load of 12A, ensuring stable operation in a variety of lighting installations.
Key Features
2.4 GHz RF Wireless Control
Smooth Brightness Adjustment (Dimming)
MiBoxer Remote Control and Wall Panel Support
Auto-Transmit Function – Signal Transfer Between Controllers
High Signal Stability and Interference Resistance
Quick Installation – No Programming Required
Technical Specifications
Power Supply: DC 12–24V
Maximum Load: 12 A
Output Type: Common Anode
RF Control Range: Up to 30 m
Operating Temperature: -10°C to +40°C
Applications
Single Color / Mono LED Strips
Decorative, Ceiling, and Linear Lighting
Home and Office Installations
Extensive Lighting Systems with Multiple Controllers
FUT036S
