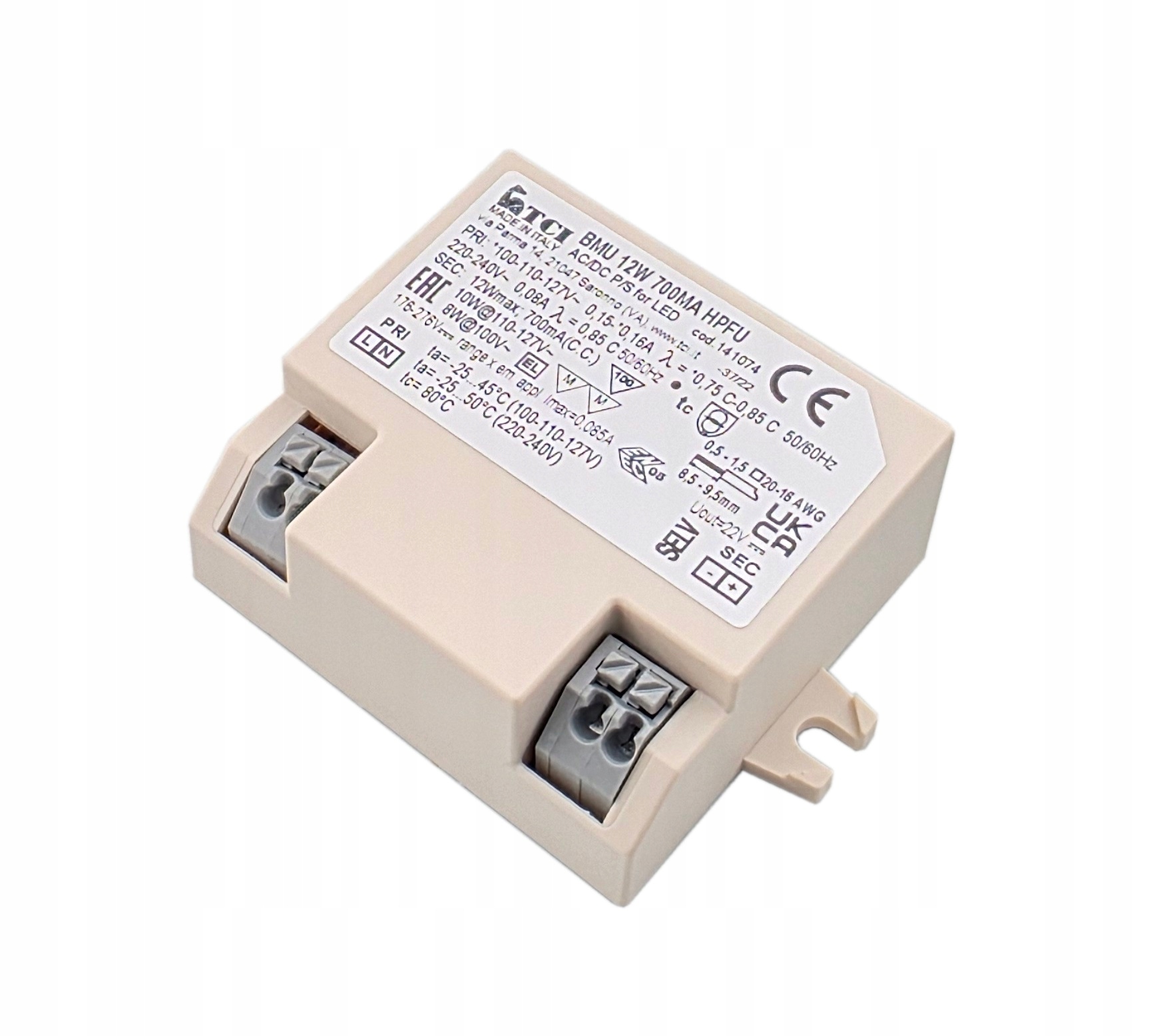

LED power supply BMU 12W 700mA HPFU 141074
LED power supply
Technical parameters:
- Power: 12W
- Current: 700 mA
- Supply voltage: 100, 100 ÷ 127 V, 220 ÷ 240 V
- AC voltage: 90 ÷ 264 V
- DC voltage: 176 ÷ 276 V
- Output voltage: 2 ÷ 17 V
- Frequency: 50 - 60 Hz
- Power Factor (λ): 0.85 C
- Efficiency: > 0.80 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≥ 45%
- Starting current: 27 A (250 µsec)
- Output ripple: ≤ 3%
- Housing: IP20
- Maximum quantity for CB B16A: 27 pcs.
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- EC,
- ENEC,
- CB CERTIFICATE,
- E.A.C.,
- UKCA
