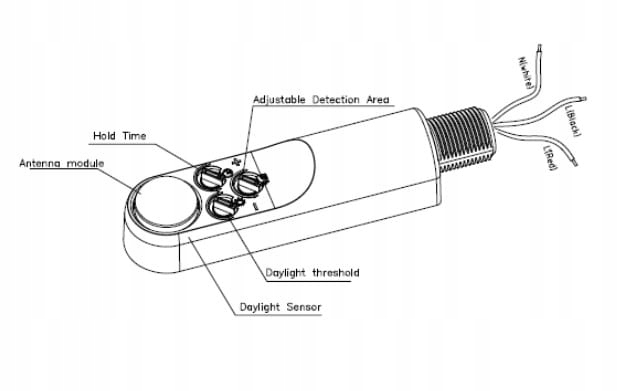

The MC168S IR sensor is an advanced PIR motion sensor designed specifically for side-mounted LED fixtures. It allows for convenient ON/OFF control and easy configuration of parameters such as detection area, operating time, and daylight threshold using a rotary switch. Ideal for mounting at heights up to 6 meters, it offers a wide range of indoor lighting applications.
Additional information:
Mounting type: external, side
Net weight: 67.5 g ±3 g
Technical parameters:
Power supply voltage: 220-240 V AC
Nominal power: 230 V AC
Standby power consumption: ≤0.5 W
Load:
Inductive: 200 W @230 V AC
Resistive: 400 W @230 V AC
Surge current: 30 A (cold start)
Detection method: PIR
Operation time: 5 s / 30 s / 1 min / 5 min (configurable)
Storage Temperature: -40°C to +80°C (Humidity ≤85%, non-condensing)
Ingress Protection: IP65
Certifications and Standards:
Safety (LVD): EN61058-1-2, EN61058-1
Surge Resistance: 1 kV (L/N, EN61000-4-5)
EMC: EN55015
Environment: RoHS 2.0, Reach
Certificates: CE, RED
Installation Notes:
The sensor should be installed according to the manufacturer's recommendations, avoiding locations exposed to temperature fluctuations or drafts, which may cause false alarms. Installation by a qualified electrician is required.
