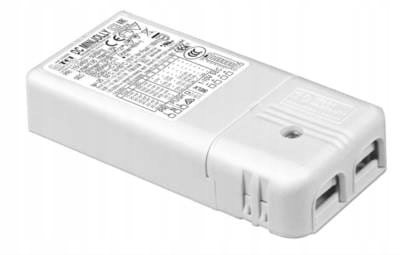

MINI JOLLY 151400 DC LED power supply
Power LED:
- constant current,
- dimming 1 – 10V, 0 – 10V, PUSH,
- current regulation using a dip-switch.
Technical parameters:
- Power: 1 ÷ 20 W
- Current: 250 – 900 mA
- Rated supply voltage: 110 ÷ 127 V, 220 ÷ 240 V
- AC voltage: 99 ÷ 264 V
- DC voltage: 176 ÷ 280 V
- Voltage Vout max: 3 – 53 V
- Power frequency: 50 – 60 Hz
- Power Factor λ: 0.95
- Efficiency: > 0.85 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≤ 10%
- Starting current: 5 A (50 µsec)
- Power consumption: ≤ 0.5 W
- Output ripple: ≤ 3%
- PFC: yes
- Housing: IP20
- Maximum quantity for CB B16A: 50 pcs.
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- EC
- ENEC
- CB CERTIFICATE
- UL + CoA
- RCM
- CCC
- EAC
- UKCA
