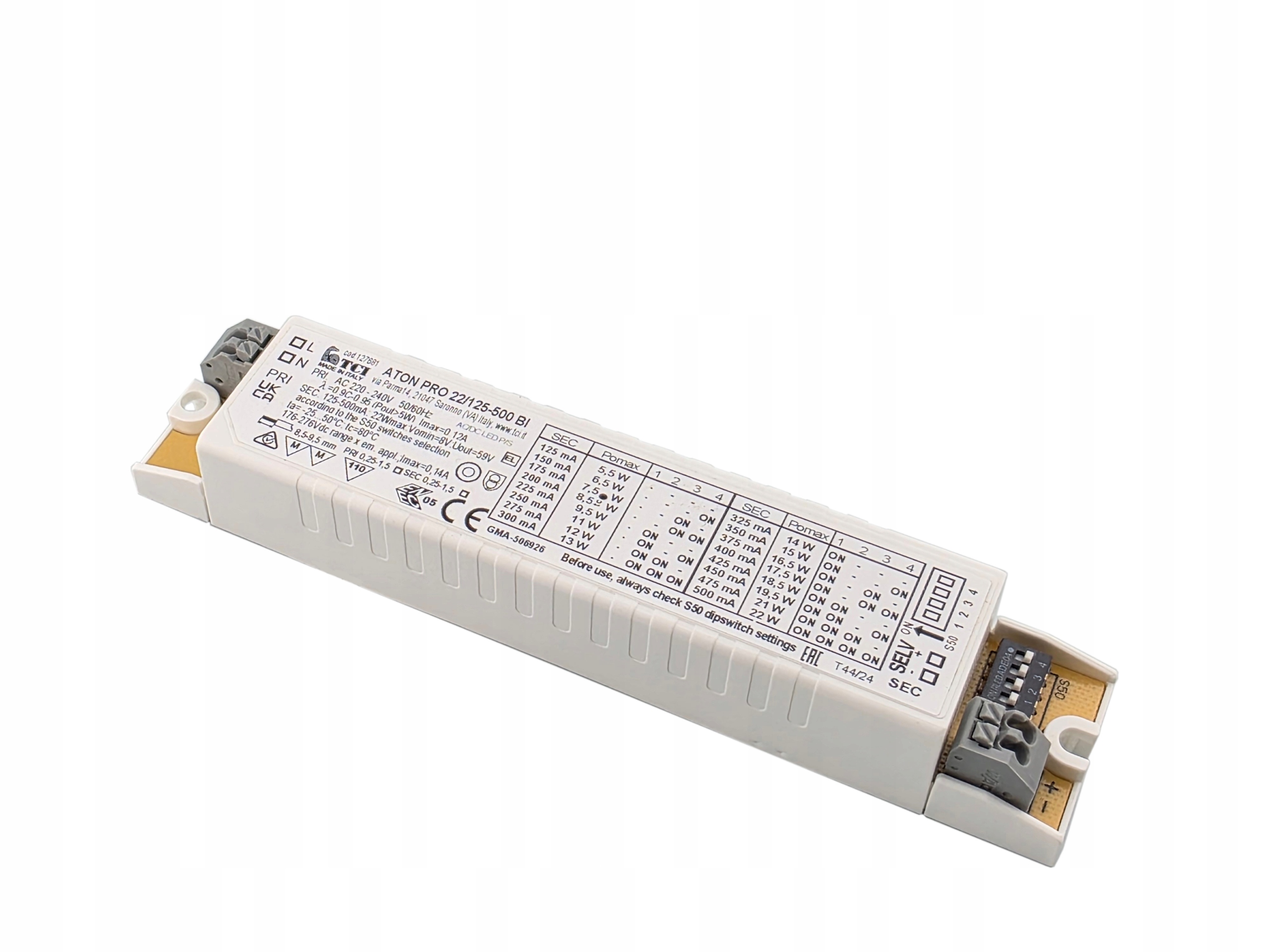

ATON PRO 22W / 125-500mA BI LED Power Supply
In-wall power supply:
- Multi-current power supply with DIP switch for output current selection.
- Independent IP20 power supply for indoor use.
- Suitable for lighting equipment with protection class I and II.
- Active power factor corrector.
- Current regulation ±5%, including temperature fluctuations.
Specifications:
- Power: 5.5-22 W
- Rated voltage: 220 ÷ 240V, 110 ÷ 127 V
- Current: 125mA – 500mA
- Frequency: 50-60 Hz
- Operating range: 198 ÷ 264 V AC, 176 ÷ 276 V DC
- iTHD: ≥ 15%
- Output current ripple: ≤ 3%
- λ max. Power Factor: 0.95
- Housing: IP20
Protection:
- against overheating and short circuits;
- against mains voltage surges;
- against overloads.
- Thermal protection = C.5.a.
Certificates:
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384
