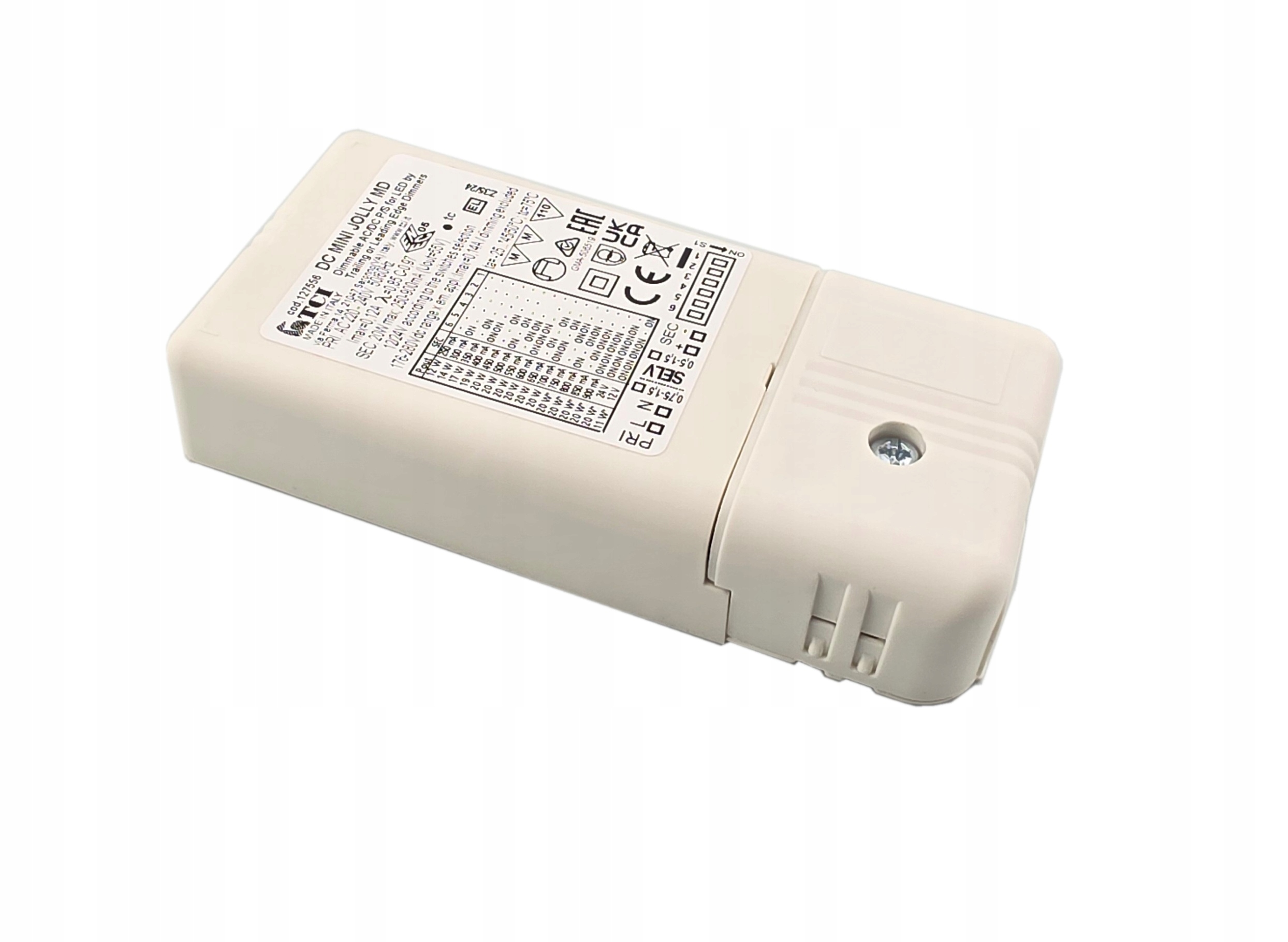

DC LED power supply MINI JOLLY MD PHASE CUT 127556
LED power supply:
- constant current
- adjustable using DIP-SWITCH,
- PHASE CUT dimming.
Technical parameters:
- Power: 3 / 20 W
- Current: 250 – 900 mA
- Supply voltage: 220 / 240 V
- AC voltage: 198 / 264 V
- DC voltage: 176 / 280 V
- Output voltage: 5 / 48 V
- Frequency: 50 – 60 Hz
- Power Factor (λ): 0.85
- Efficiency: > 88% at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≤ 10%
- Starting current: 5 A (50 µsec)
- Output ripple: ≤ 3%
- PFC: Yes
- Dimming: PHASE CUT / IGBT-TRIAC
- Housing: IP20
- Maximum quantity for CB B16A: 50 pcs.
Security:
- against overheating and short circuits
- against voltage surges
- against overloads
Certificates:
- CE,
- ENEC,
- CB,
- RCM,
- E.A.C.,
- UKCA
- EN 55015,
- EN 61000-3-2,
- EN 61000-3-3,
- EN 61347-1,
- EN 61347-2-13,
- EN 61547,
- EN 62384
