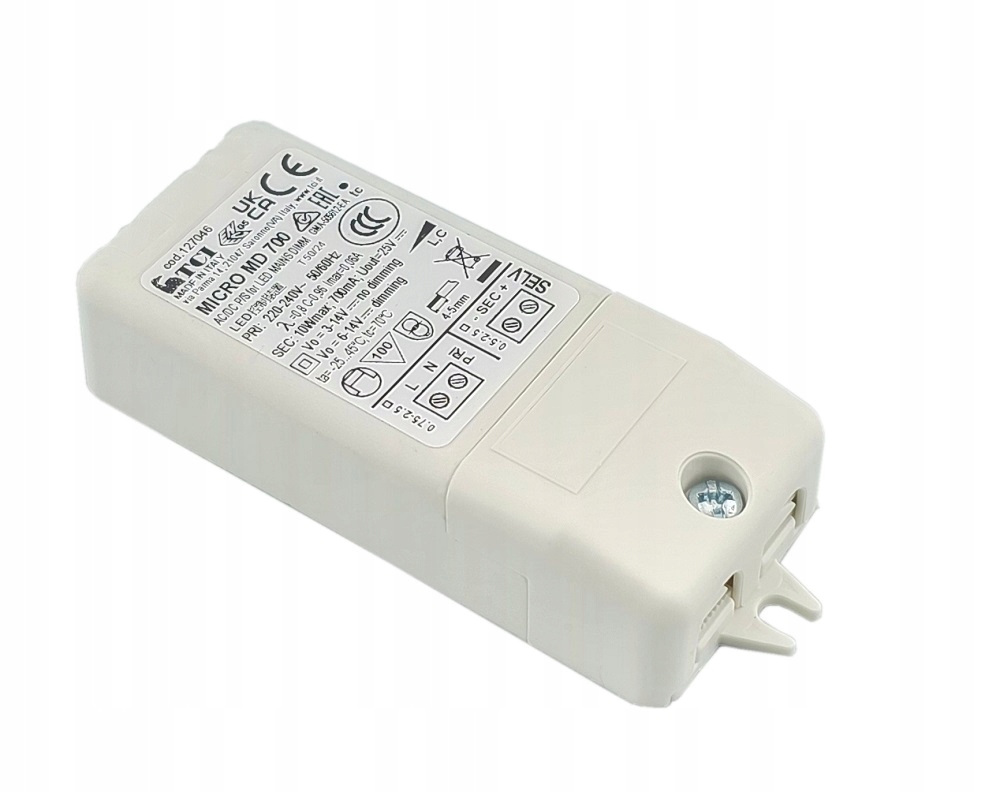

MICRO MD 700 PHASE CUT LED power supply 127046
LED power supply:
- constant current,
- PHASE CUT dimming.
Technical parameters:
- Power: 3 ÷ 10 W
- Current: 700 mA
- Rated supply voltage: 220 ÷ 240 V
- AC voltage: 198 ÷ 264 V
- Voltage Vout: 3 - 14V
- Power frequency: 50 - 60 Hz
- Power Factor: 0.8 C - 0.96
- Efficiency: > 0.82 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≤ 10%
- Starting current: 2 A (50 µsec)
- Output ripple: ≤ 20%
- PFC: yes
- Dimming: PHASE CUT / IGBT-TRIAC
- Housing: IP20, indoor use
- Dimensions: 102 x 38 x 21 mm
- Weight: 68 g / collective package of 60 pcs
- Service life: 50,000 h
- Maximum quantity for CB B16A: 50 pcs
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- CE
- ENEC
- CB CERTIFICATE
- RCM
- CCC
- EAC
- UKCA
