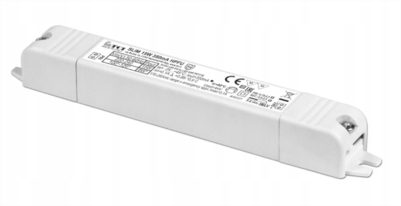

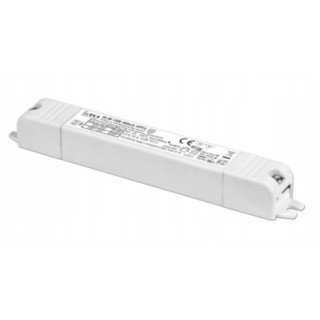

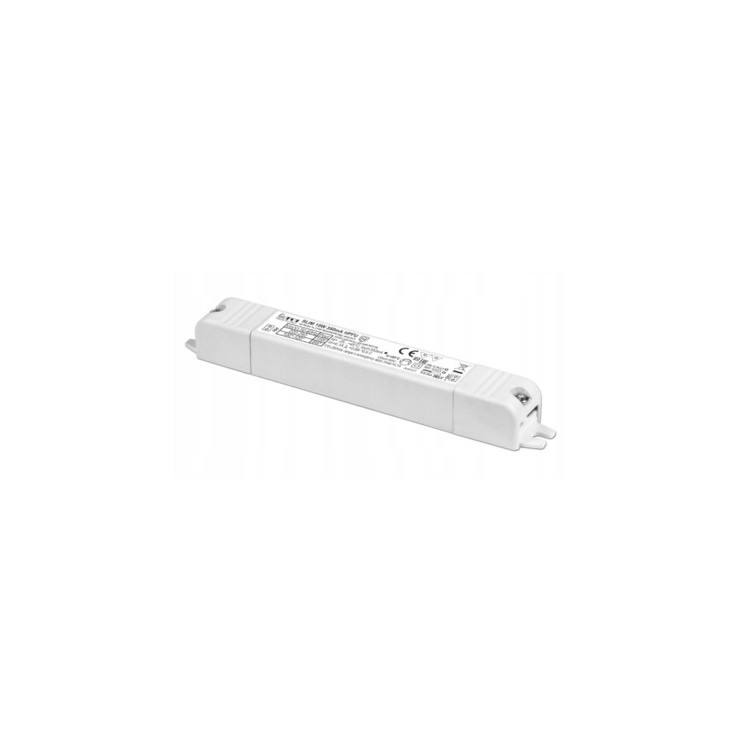

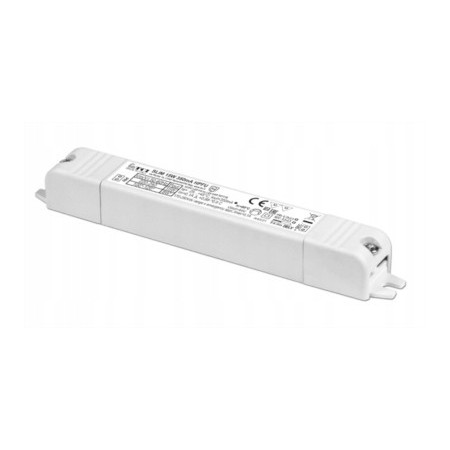

LED power supply SLIM 11W 700mA HPFU 141114
LED power supply:
Technical parameters:
- Power: 0 ÷ 15 W
- Current: 700 mA
- Supply voltage: 100 ÷ 127 V, 220 ÷ 240 V
- AC voltage: 90 ÷ 264 V
- DC voltage: 170 ÷ 280 V
- Output voltage: 2 ÷ 17 V
- Frequency: 50 - 60 Hz
- Power Factor (λ): 0.87 (0.89) C
- Efficiency: 0.80 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≥ 40%
- Starting current: 27 A (250 µsec)
- Output ripple: ≤ 3%
- Housing: IP20, indoor use

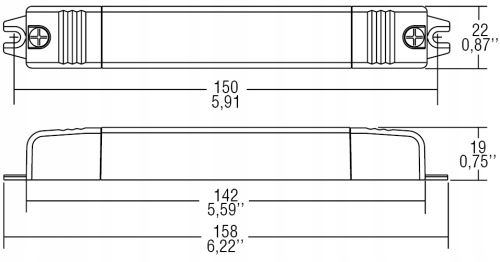

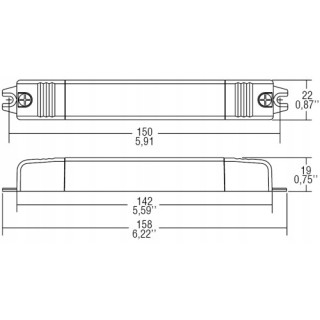

- Dimensions: 158 x 22 x 19 mm
- Weight: 55 g / collective package of 50 pcs
- Service life: 50,000 h
- Maximum quantity for CB B16A: 27 pcs.
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- EC,
- ENEC,
- CB CERTIFICATE,
- E.A.C.,
- UKCA
