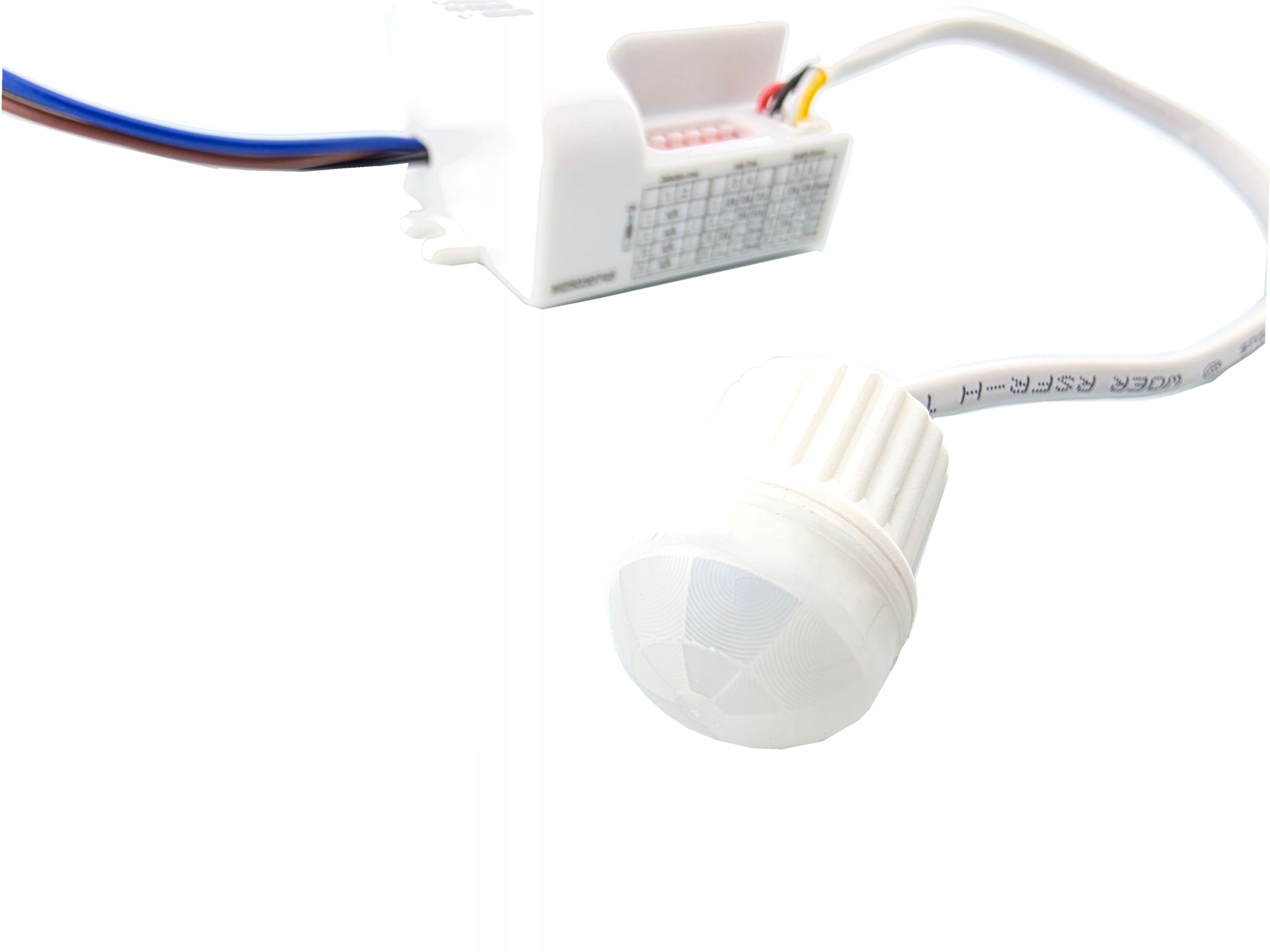

Merrytek MC113S Twilight Motion Sensor PIR Sensor with Infrared Cable

zł19.60
Tax included

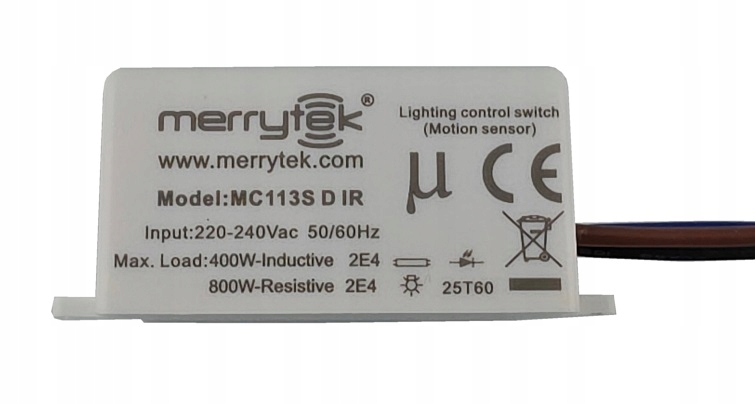

Merrytek MC113SD‑IR

Professional PIR Motion and Twilight Sensor

Applications

  • Ideal for automatic lighting control in LED fixtures (ceiling lights, ceiling lamps) indoors: home, office, hallway, warehouse.
  • Quality and reliability, increased durability
  • The infrared (PIR) sensor detects motion by detecting changes in thermal radiation emitted by objects within its range. When it detects a temperature difference, for example, caused by human movement, it automatically triggers an alarm or turns on the lights. This makes it exceptionally effective and reliable.

Technical Parameters:

  • Operating Voltage: 220–240V AC
  • Rated Voltage: 230V AC
  • Standby Power Consumption: ≤ 0.5W
  • Output: ON/OFF mode, 800W (resistive) and 400W (inductive) load
  • Inrush Current: 30A (cold start, 200µs @230V)

Detection and Control:

  • Method: Passive Infrared (PIR)

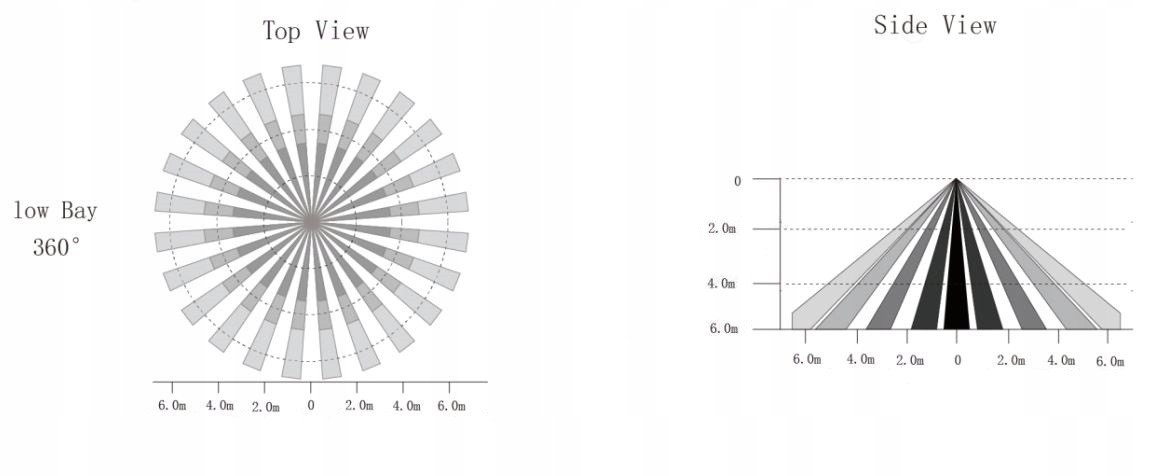

  • Detection Range:
  • Ceiling (3m height): ≥3m
  • Wall (1.2m height): ≥6m

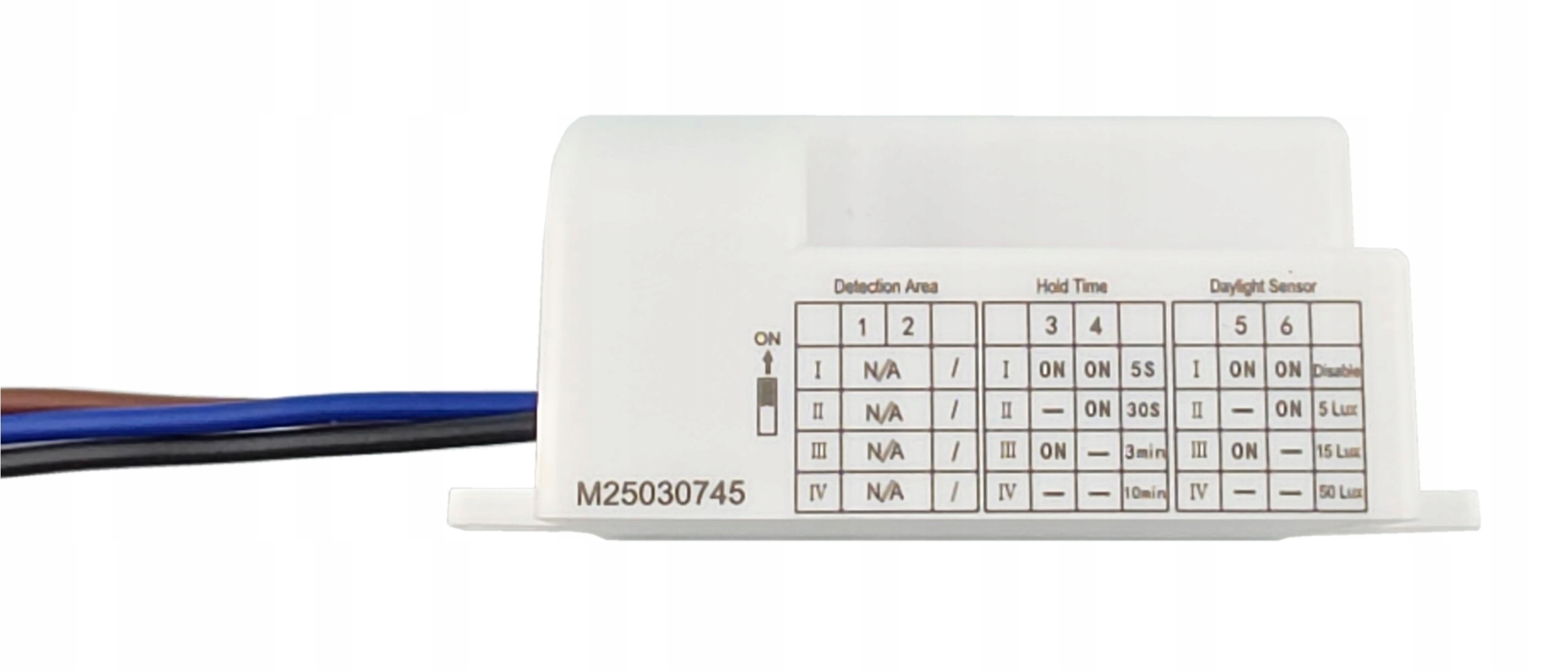

  • Operation Time Adjustment: 5s / 30s / 3min / 10min (DIP switch)
  • Twilight Sensor: 5Lux / 15Lux / 50Lux / Off

Features:

  • Merrytek MC113S D-IR version
  • Power supply: 220–240V AC
  • Operation mode: ON/OFF, PIR
  • Load: 800W R / 400W I
  • Standby power consumption: ≤ 0.5W
  • Detection: ceiling ≥3m, wall ≥6m
  • Adjustment: time and twilight threshold
  • Quality: improved components, longer durability, higher quality standards

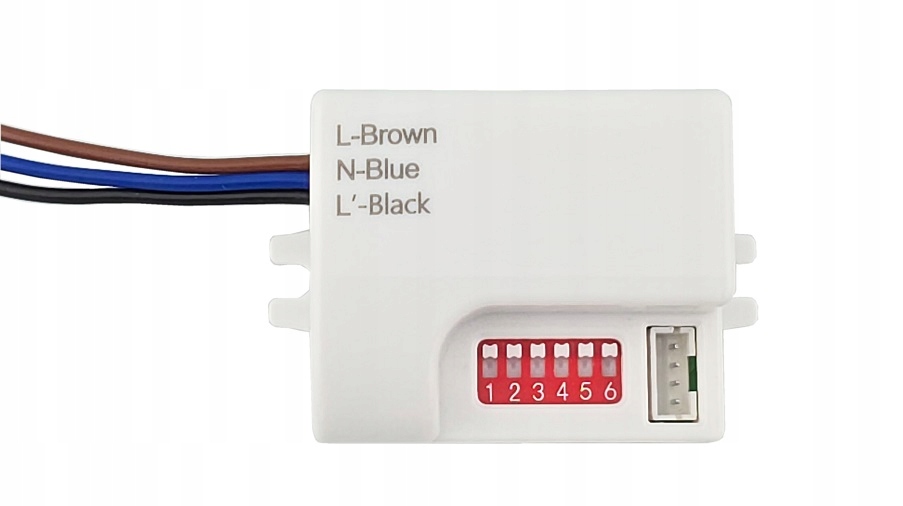

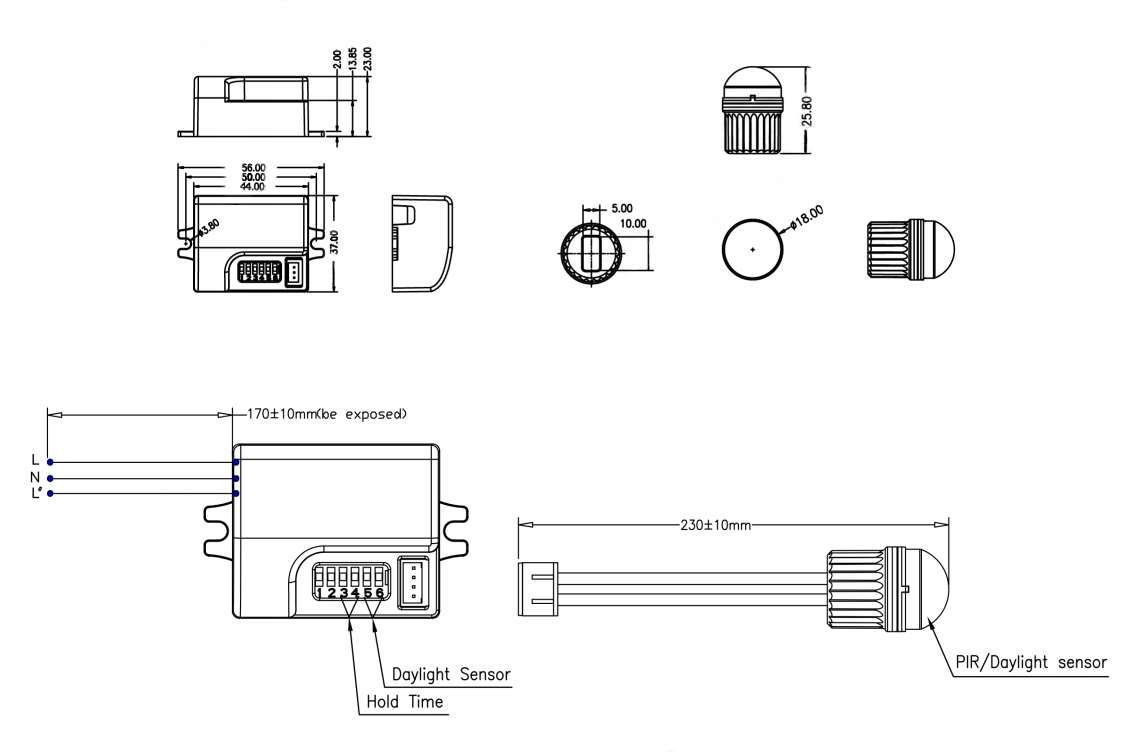

Simple installation, requires soldering or a 3-wire connector (L, N, output).

The ideal choice for installers and demanding users – a reliable and precise sensor.

MC113S D IR
