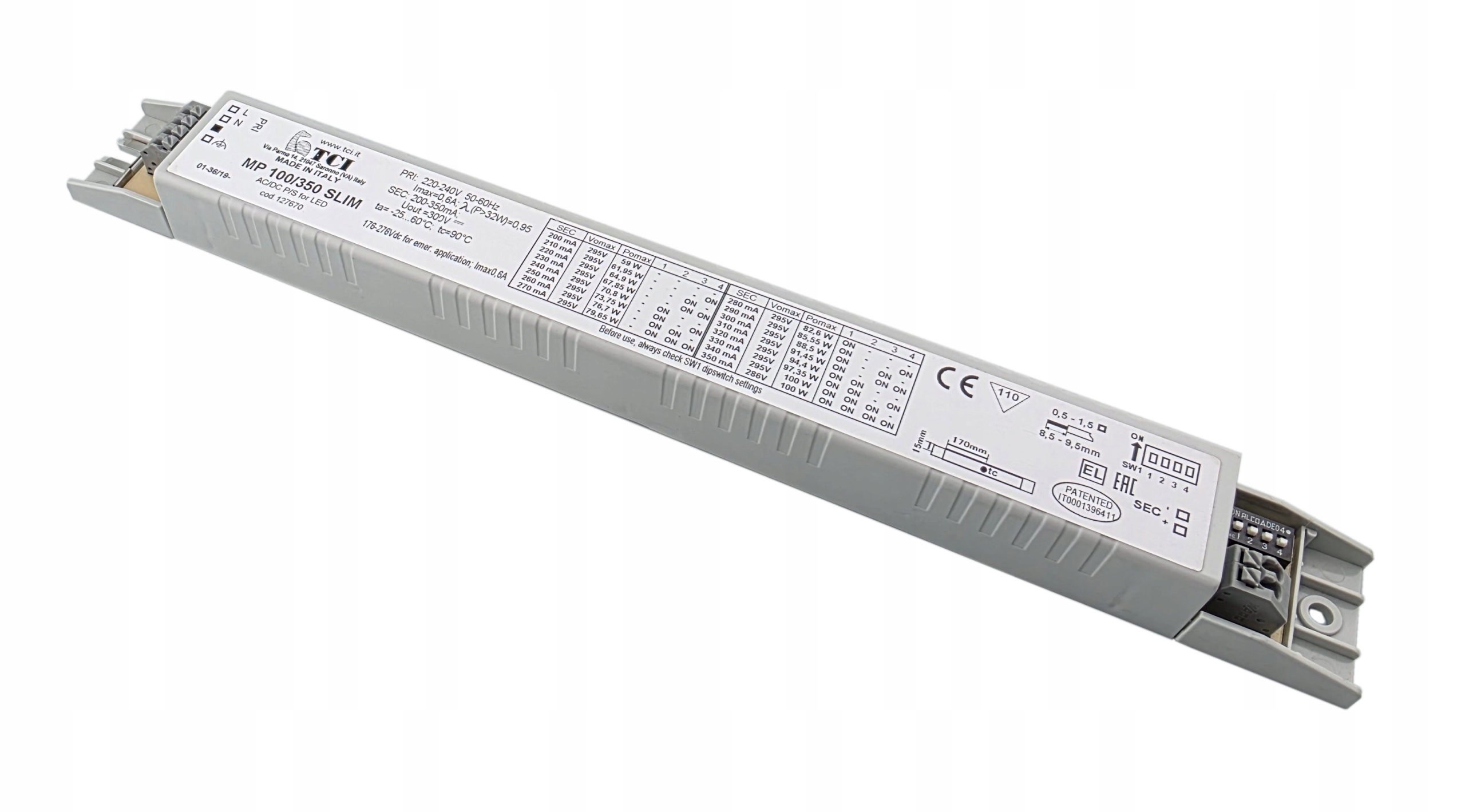

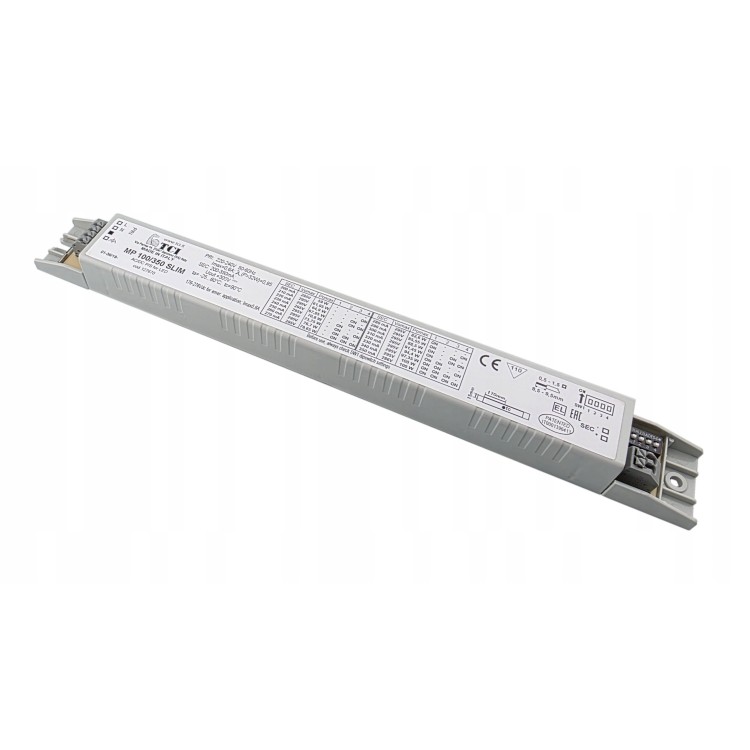

MPX 100W / 350mA 277V Slim LED Power Supply
In-wall power supply:
- Multi-current power supply with DIP switch for output current selection.
- Independent IP20 controller for indoor use.
- Suitable for Class I and II lighting equipment.
- Active power factor corrector.
- Current regulation ±5%, including temperature fluctuations.
Specifications:
- Power: 59-100 W
- Rated voltage: 220-240V
- Current: 200mA-350mA
- Frequency: 50-60 Hz
- Operating range: 176-275 V DC
- iTHD: ≥ 15%
- Output current ripple: ≤ 3%
- λ max. Power Factor: 0.90
- Housing: IP20
Protection:
- against overheating and short circuits;
- against mains voltage surges;
- against overloads.
- Thermal Protection = C.5.a.
Certifications:
CSA C22.2 no. 250, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384, UL 8750
