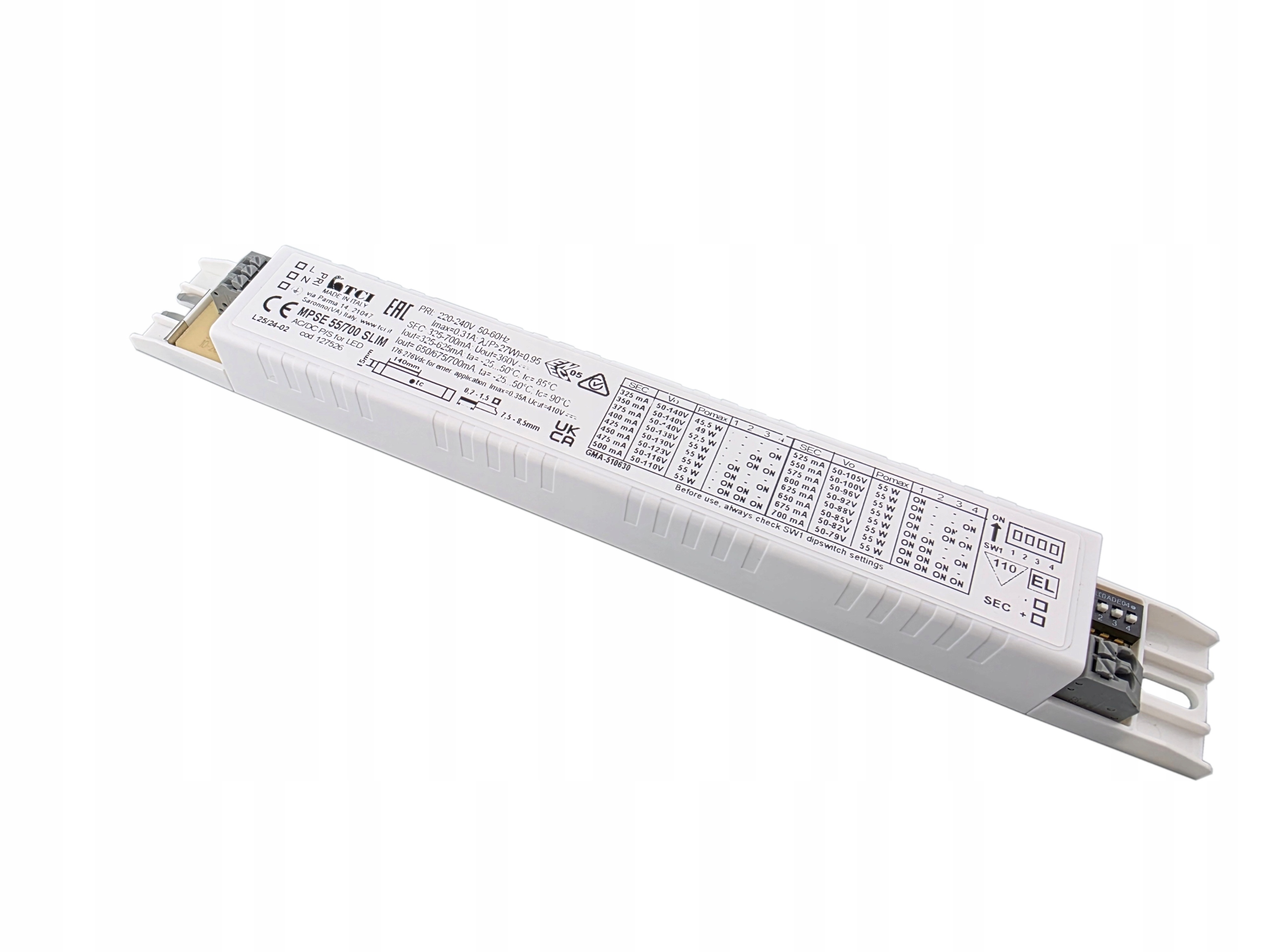

LED power supply MPSE 55/700 SLIM 127526
LED power supply:
- constant current
- with current regulation using a dip-switch.
Technical parameters:
- Power: 16 / 55 W
- Current: 325 - 700 mA
- Rated supply voltage: 220 / 240 V
- AC voltage: 198 / 264 V
- DC voltage: 176 / 276 V
- Voltage Vout max: 50 - 140 V
- Power frequency: 50 - 60 Hz
- Power Factor λ: 0.95
- Efficiency: > 0.93 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≤ 10%
- Starting current: 45 A (100 µsec)
- Output ripple: ≤ 3%
- PFC: yes
- Maximum quantity for CB B16A: 30 pcs.
Security:
- against short circuits
- against mains voltage surges
- against overloads
Certificates:
- ENEC
- CE
- CB CERTIFICATE
- RCM
- EAC
- UKCA
