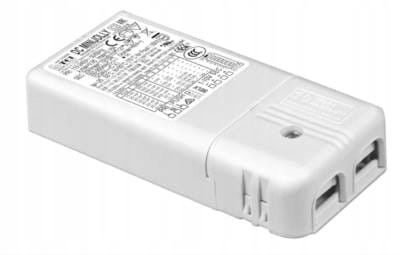

MINI JOLLY 125400 DC LED power supply
LED power supply:
- constant current,
- constant voltage.
Technical parameters:
- Power: 1/20 W
- Current: 250 – 900 mA
- Rated supply voltage: 110/127V, 220/240V
- AC voltage: 99 / 264 V
- DC voltage: 176 / 280 V
- Vout voltage: 3 - 53 V
- Power frequency: 50 - 60 Hz
- Power Factor λ: 0.95
- Efficiency: > 0.85 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≤ 10%
- Starting current: 5 A (50 µsec)
- Power consumption (standby power): ≤ 0.5 W
- Output ripple: ≤ 3%
- Housing: IP20, indoor use
- Maximum quantity for CB B16A: 50 pcs.
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- CE
- ENEC
- CB CERTIFICATE
- UL + CoA
- RCM
- EAC
- UKCA
