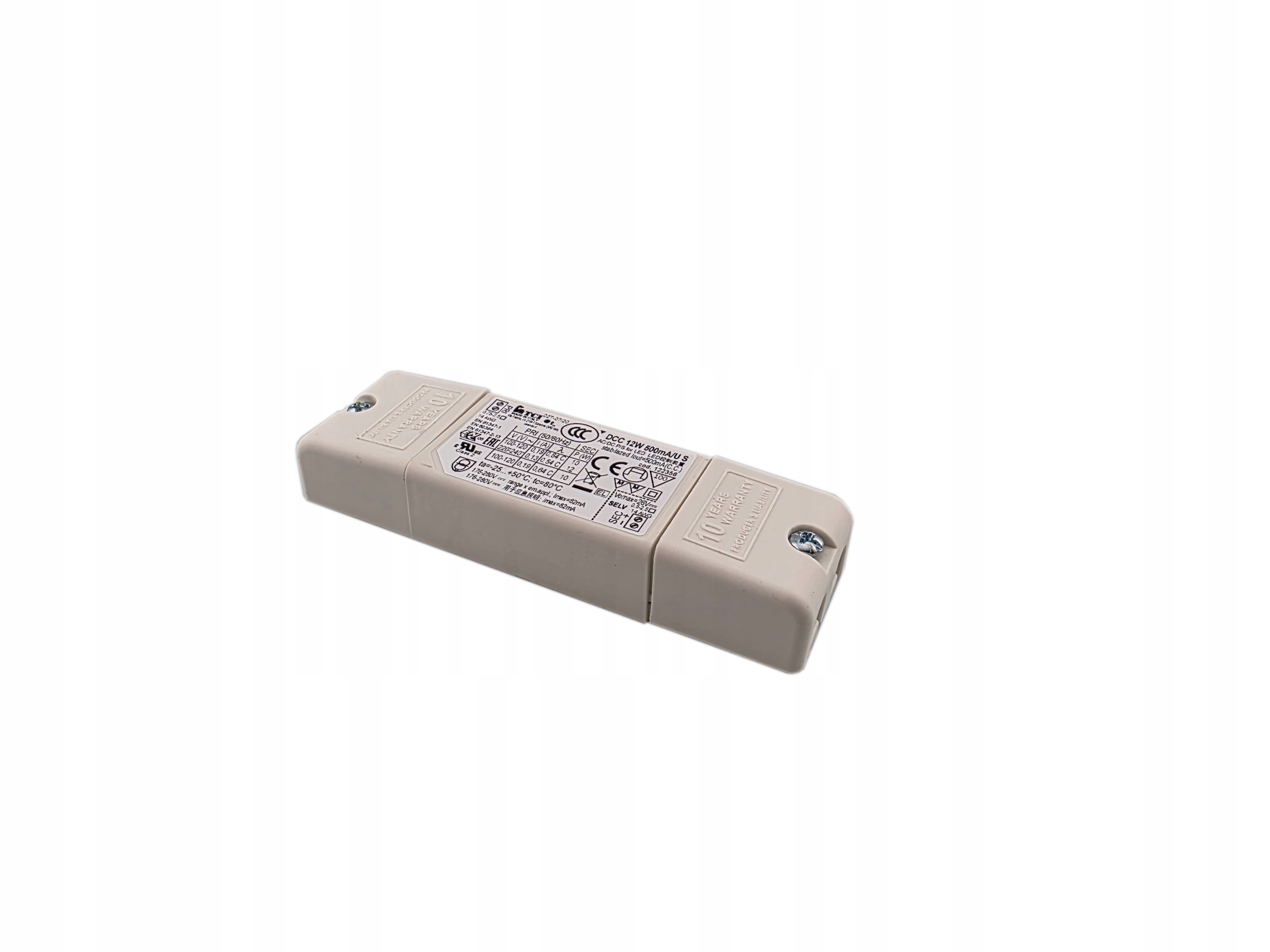

LED power supply DCC 12W 500mA/U S 122356
LED power supply
Technical parameters:
- Power: 0 ÷ 15 W
- Current: 500 mA
- Supply voltage: AC 100 ÷ 127 V, AC 100 ÷ 240 V
- AC voltage: 90 ÷ 264 V
- DC voltage: 176 ÷ 280 V
- Output voltage: 2 ÷ 24 V
- Frequency: 50 - 60 Hz
- Power Factor (λ): 0.54 (0.64)
- Efficiency: 0.73 at 230 V and 100% load
- Starting current: 27 A (250 µsec)
- Output ripple: ≤ 3%
- Housing: IP20, indoor use

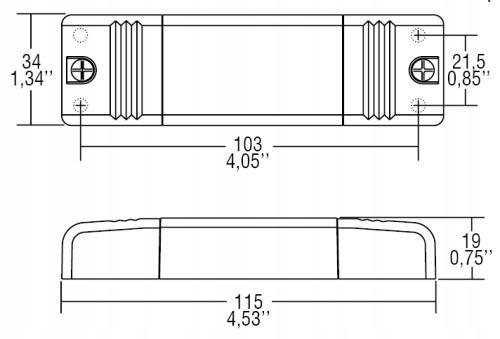

- Dimensions: 115 x 34 x 19 mm
- Weight: 60 g / collective package of 50 pcs
- Service life: 50,000 h
- Maximum quantity for CB B16A: 27 pcs.
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- EC,
- ENEC,
- CB CERTIFICATE,
- UL + CoA,
- RCM,
- CCC,
- EAC
