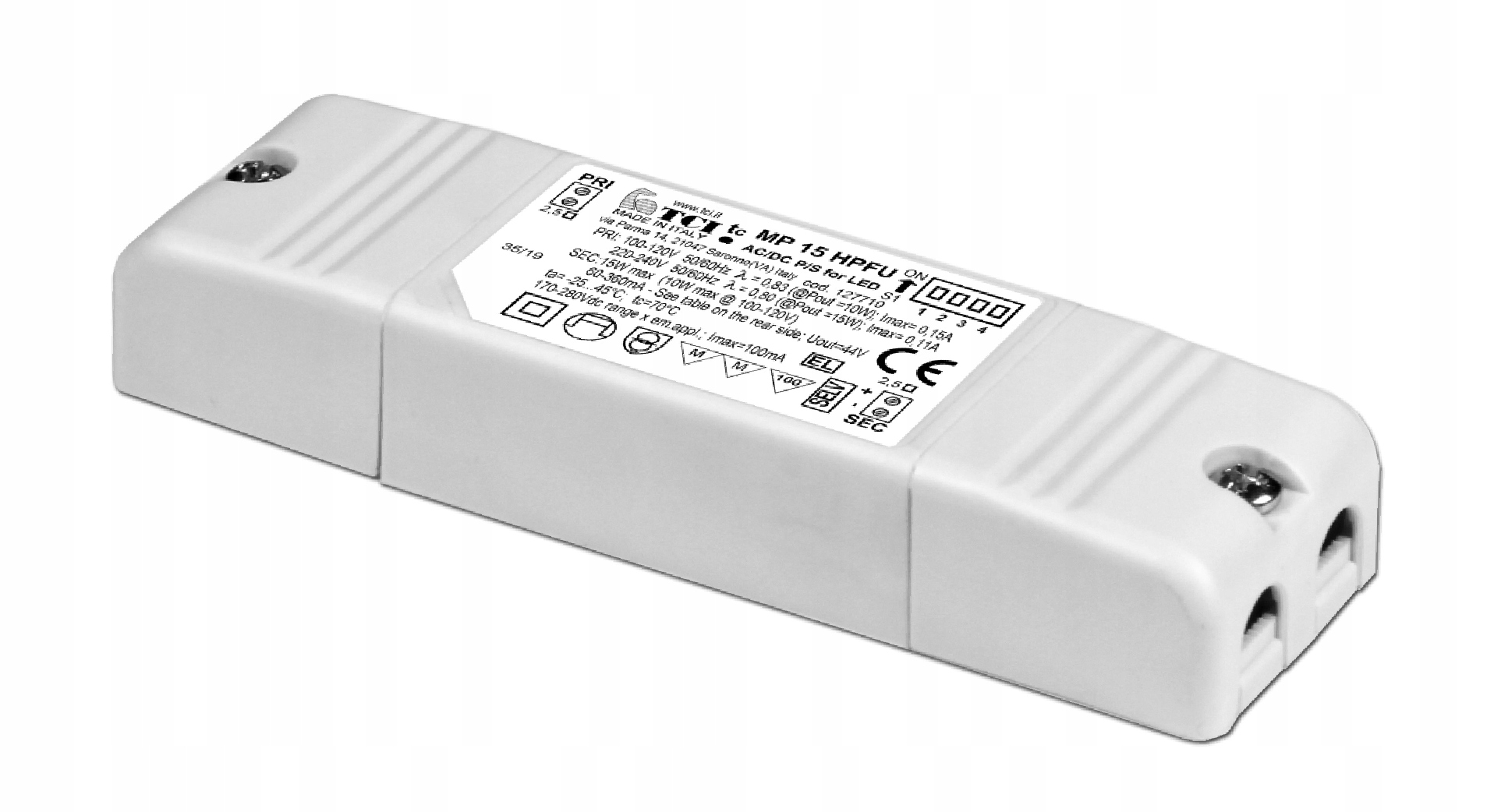

MP 15W HPFU LED Power Supply
In-wall power supply:
- Multi-current power supply with DIP switch for output current selection.
- Independent IP20 controller, for indoor use.
- Class II protection against electric shock from direct or indirect contact.
- Active power factor corrector.
- Current regulation ±5%, including temperature fluctuations.
Specifications:
- Power: 2 - 15 W
- Nominal voltage: 220 - 240 V
- Current: 60 mA - 360 mA
- Frequency: 50-60 Hz
- Operating range: 90 - 264 V AC, 176 - 275 V DC
- iTHD: ≥ 60%
- Output current ripple: ≤ 3%
- λ max. Power Factor: 0.83
- Housing: IP20
Protection:
- against overheating and short circuits;
- against mains voltage surges;
- against overloads.
- Thermal Protection = C.5.a.
Certifications:
CSA 22.2 No. 250.13, EN 55015, EN60598-1, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, UL 1310, UL 8750
