Merrytek MSA017D IR PIR Motion Sensor DALI 2.0

zł123.45
Tax included
Quantity

0 review(s)

Security policy

Delivery rules

Return Policy

Merrytek MSA017D IR Low-Mount PIR Motion Sensor (DALI2.0 Version)

Features:

  • PIR motion detection
  • 0 output
  • Complies with DALI standards 101, 103, 303, and 304
  • Daylight sensor detection available
  • Detection area: The delay time can be remotely set
  • Maximum detection range: 6-10 m diameter
  • Maximum mounting height: 6 m
  • Motion detection is strongly recommended for warehouses, workshops, and lobbies
  • Flush and surface mounting available

Input/Output:

  • Input voltage: 9.5-22.5 V DC (DALI BUS power supply)
  • Operating current: Maximum 20 mA
  • Power consumption: ≤0.5 W @12/24 V DC
  • Output signal: DALI 2.0

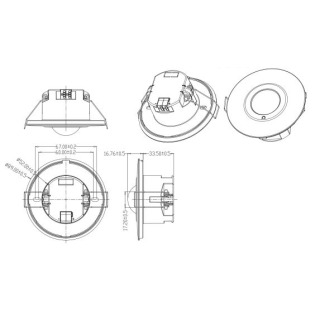

Dimensions:

  • Product size: 89 mm diameter x 34 mm height
  • Interface connections: 4-pin terminal

Sensor Parameters:

  • Function: PIR motion detection + daylight sensor
  • Detection Area: DIP or Remote Settings: 100% / 75% / 50% / 25%
  • Waiting Time: MH10 Remote Control: 5s / 30s / 1min / 3min / 5min / 10min / 20min / 30min
  • Beam Detection Range (based on 100% sensitivity): 2.5 - 4m based on a mounting height of 3m
  • Mounting Height: Typical value 2-6m: 3m

MSA017D IR
23 Items
No customer reviews for the moment.
