Looking for a reliable, sealed connector for demanding electrical installations?
Discover the KON25 5PIN – an advanced junction box designed for maximum protection and ease of installation.

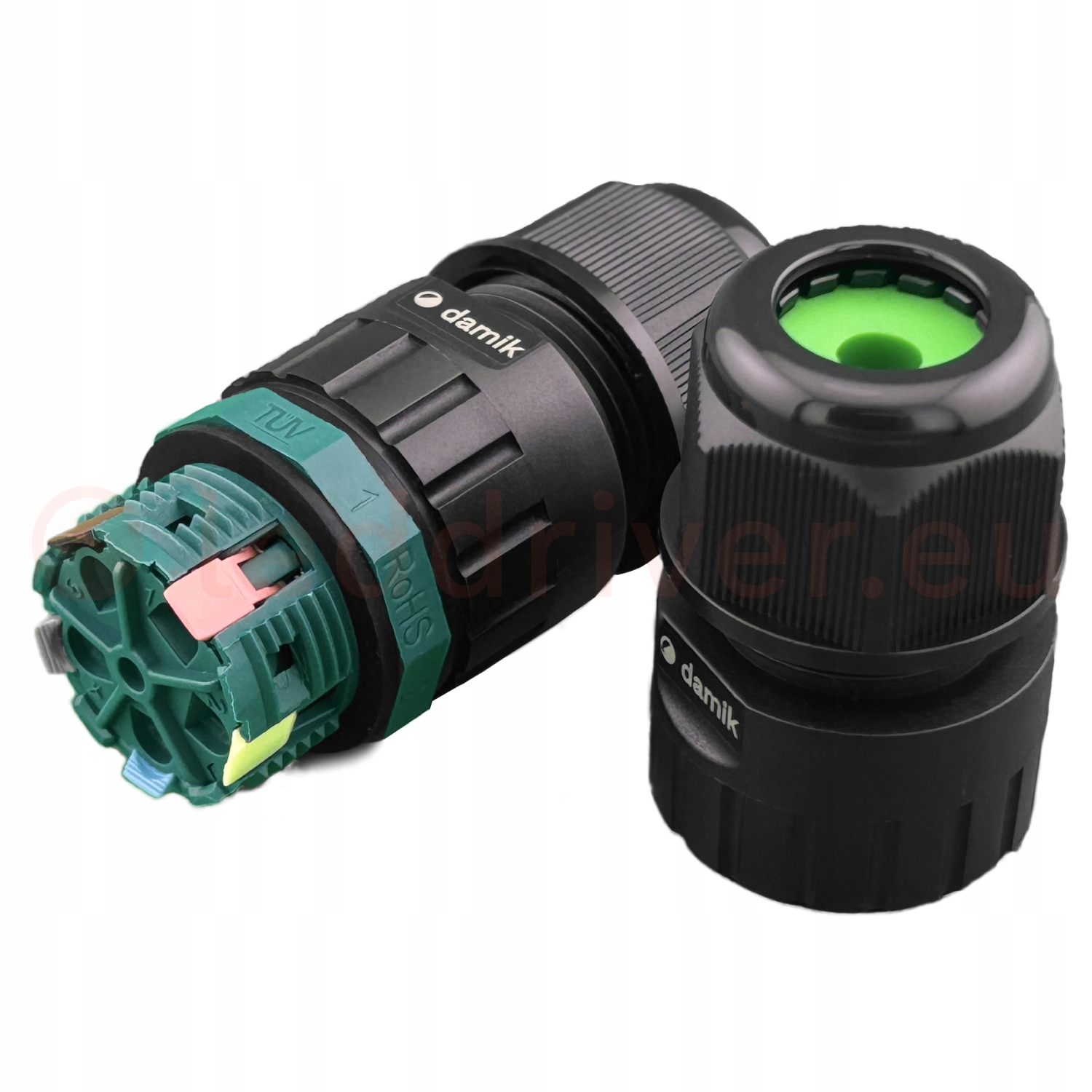

Screwless Quick Connection
Thanks to its innovative design, this connector enables quick and secure wire connections – without the need for tools. This is convenient, time-saving, and guaranteed durability.
Highest Ingress Protection – IP68
The connector provides complete protection against water, dust, and dirt, making it ideal for outdoor applications and harsh environments.
Safety and Quality
Housing: Durable PA66
Seal: Durable silicone rubber
Terminals: Copper alloy for excellent conductivity
Flammability Class: V0 - Fire Resistance
Technical Data:
Number of Pins: 5 (5P)
Maximum Voltage: 450V
Wire Cross-Section: 0.5 - 2.5 mm²
Cable Type: Round
Outer Cable Diameter: 5 - 9 mm
Operating Temperature Range: -40°C to +105°C
Protection Rating: IP68
Warranty: 3 Years
Applications:
Garden and Outdoor Electrical Installations
LED Lighting
Irrigation Systems
Industry and Automation
Areas with High Humidity

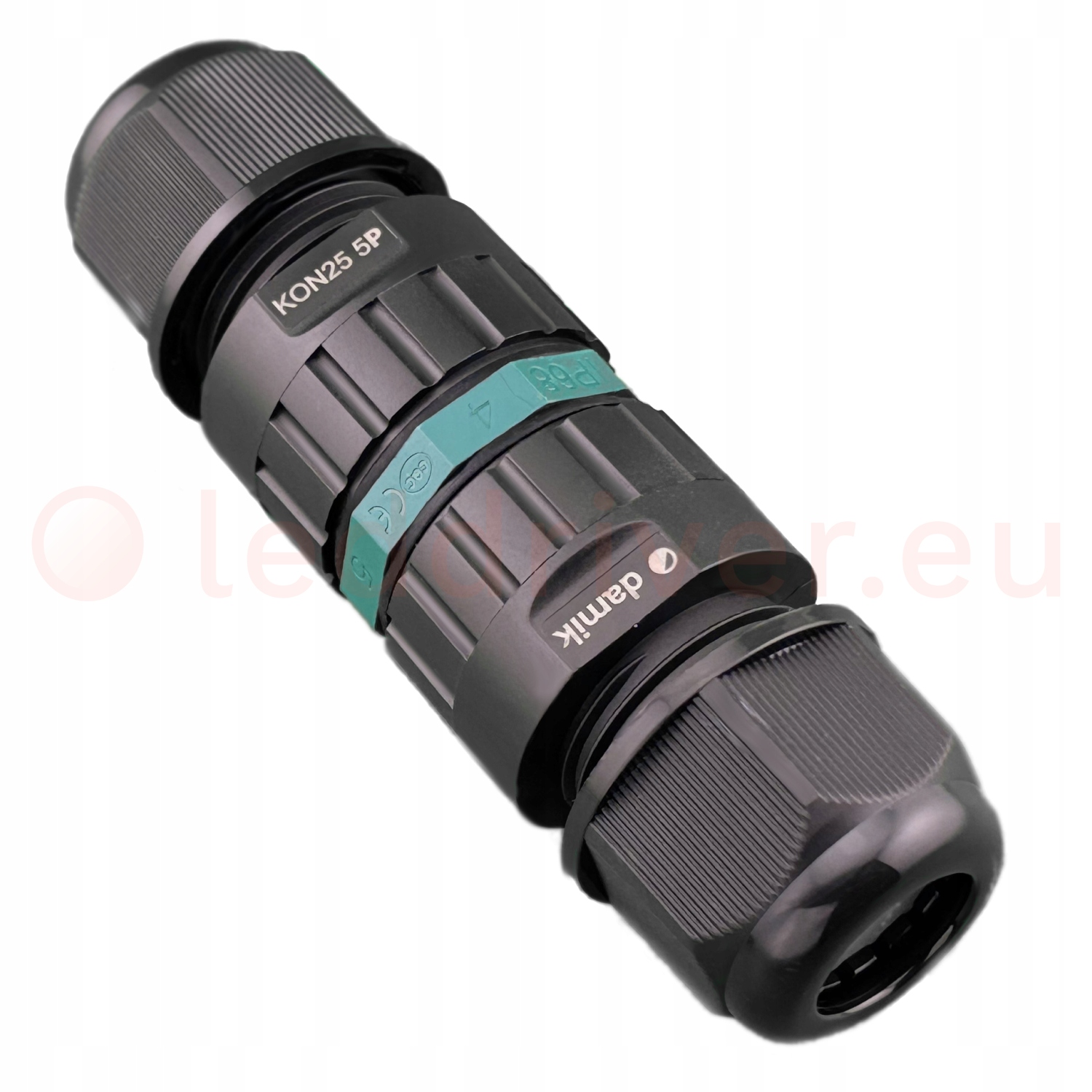

KON25 5P
