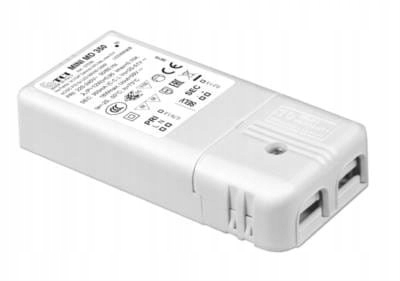

LED power supply MINI MD 500 PHASE CUT 127032
LED power supply:
- constant current,
- PHASE CUT dimming.
Technical parameters:
- Power: 8 ÷ 20 W
- Current: 500 mA
- Supply voltage: 220 ÷ 240 V
- AC voltage: 198 ÷ 264 V
- Output voltage: max 16-42V
- Frequency: 50-60 Hz
- Power Factor (λ): 0.95 at Pout > 13 W
- Efficiency: > 0.89 at 230 V and 100% load
- Pst LM: ≤ 1
- SVM: ≤ 0.4
- ITHD: ≤ 10%
- Starting current: 2 A (50 µsec)
- Output ripple: ≤ 20%
- PFC: yes
- Housing: IP20, indoor use

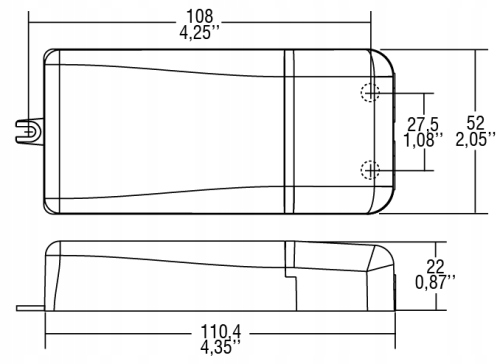

- Dimensions: 111 x 52 x 22 mm
- Weight: 108 g / collective package of 50 pcs
- Service life: 50,000 h
- Maximum quantity for CB B16A: 50 pcs.
Security:
- against overheating and short circuits
- against mains voltage surges
- against overloads
Certificates:
- EC,
- ENEC,
- CB CERTIFICATE,
- RCM,
- CCC,
- E.A.C.,
- UKCA
