PrimoLight Aluminum profile high black

zł24.99
Tax included
Quantity

0 review(s)

Security policy

Delivery rules

Return Policy

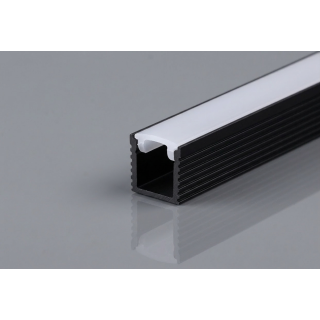

2m High LED Profile, Black Anodized, 7.5x9mm + Frosted Cover SET

Features of the 2m High Aluminum Profile – PrimoLight

The PrimoLight aluminum profile, measuring 7.5mm x 9mm, is a specialized "High Slim" profile. Unlike standard flat profiles, this model is characterized by a greater height relative to its width. This design allows for a specific light focus angle and provides a unique visual effect in modern arrangements.

Constructed from high-quality anodized aluminum, it not only provides an aesthetic, matte finish but also excellent corrosion protection and effective heat dissipation, which is crucial for maintaining the LED strip's lighting performance.

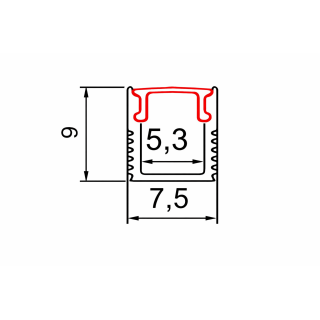

Technical specifications and dimensions (as per drawing):

  • Precise dimensions for installations requiring high accuracy:
  • External width: 7.5 mm
  • Total height: 9 mm
  • Internal width (strip space): 5.3 mm (designed for narrow LED strips)
  • Profile length: 2000 mm (2 meters)
  • Material: Anodized aluminum
  • Color: Black

Advantages and Unique Features of the 7.5x9mm Profile

  • Narrow Design (Ultra Slim): A width of just 7.5mm allows for installation in very narrow gaps where standard profiles (16-20mm) cannot fit.
  • Heat Sink Effect: Despite its compact size, the profile effectively cools the LED strip, extending its lifespan by up to several thousand hours.
  • Frosted Cover (2m): The specially profiled cover included in the kit perfectly disperses light. Thanks to the greater distance between the cover and the LEDs (resulting from the 9mm profile height), it is easier to achieve a uniform line of light when using the appropriate strip.
  • Rubber Side Walls: The profile's external structure increases the heat dissipation surface and improves adhesion when mounted with mounting adhesives or silicones.

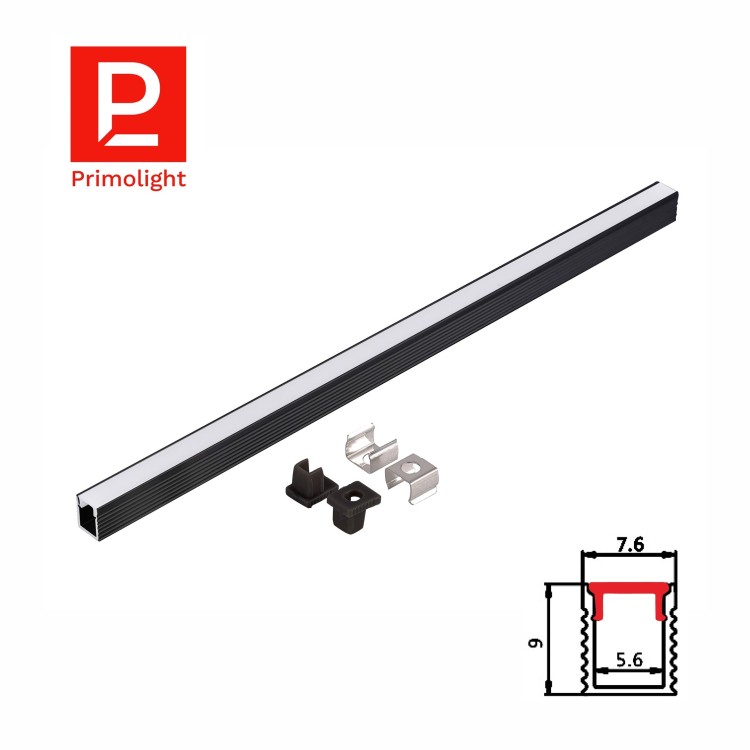

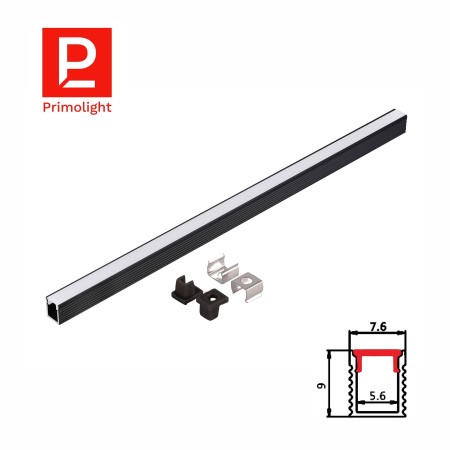

Complete Installation Kit Contents:

  • The kit includes all the components needed for a professional finish:
  • 1x Tall Aluminum Profile (2m): Basic structural element.
  • 1x Frosted Cover (2m): Aesthetically pleasing light-diffusing cover.
  • 2x Mounting Clips: Allows for stable attachment of the profile to the substrate.
  • 2x Mounting Screws: Designed for mounting the clips.
  • 2x Plastic End Caps: Side caps that protect the inside of the profile from dust and moisture.

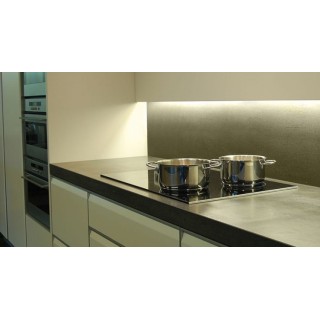

Applications:

  • Due to its unique dimensions, the profile is ideal for:
  • Cutting into thin furniture boards: Where mounting width is limited.
  • Decorative lighting for jewelry and display cabinets: A subtle line of light that doesn't dominate the display.
  • Model making and ambient lighting: Narrow gaps in decorative elements.
  • Groove and joint lighting: With a width of 7.5 mm, it fits through many standard gaps between tiles.
PML00008B
