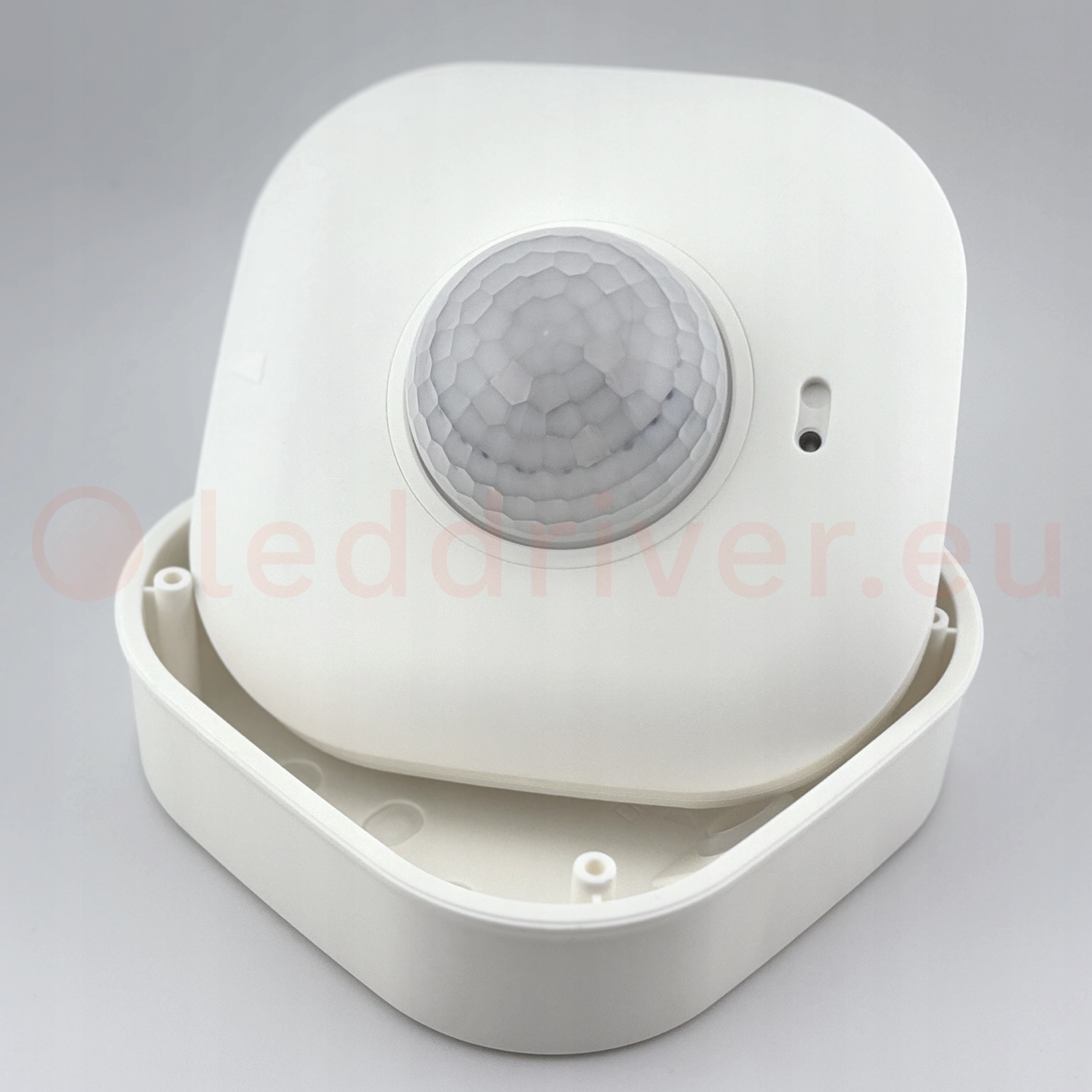

The MSA059D IRPIR Motion Sensor is a high-mount device with daylight detection and a DALI2.0 output. Thanks to Merrytek's unique algorithm, the sensor precisely detects human motion in virtually any high-mount application, such as warehouses, halls, or lobbies.
Product Features:
DALI 2.0 Compliant (Standards 101, 103, 303, 304)
Parameters can be adjusted using the remote control (MH10)
Mounting Options: Surface-mounted and recessed
Technical Parameters:
Input Voltage: 9.5–22.5 V DC (powered by the DALI bus)
Operating Current: Max 20 mA
Power Consumption: ≤ 0.5 W at 12/24 V DC
Output Signal: DALI 2.0
Functions: PIR motion detection, daylight sensor
Detection Area: Adjustable (100%, 75%, 50%, 25%)
Backup Time: 5 s to 30 min (remote or DIP switch adjustment)
Daylight Measurement Range: 2–65,000 Lux
Maximum mounting height: 8 m

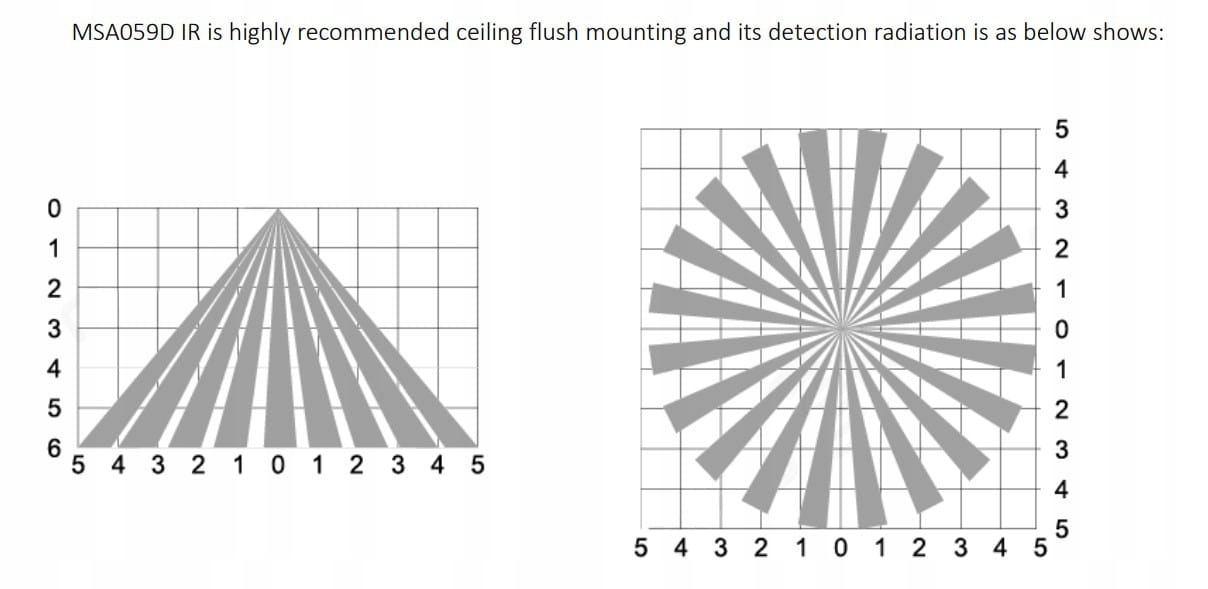

Detection range: 8–10 m diameter
Operating temperature: -25°C...+50°C
Protection rating: IP20
Dimensions:
Recessed: 105 x 105 x 90.8 mm
Surface: 105 x 105 x 65.8 mm
MSA059D IR
