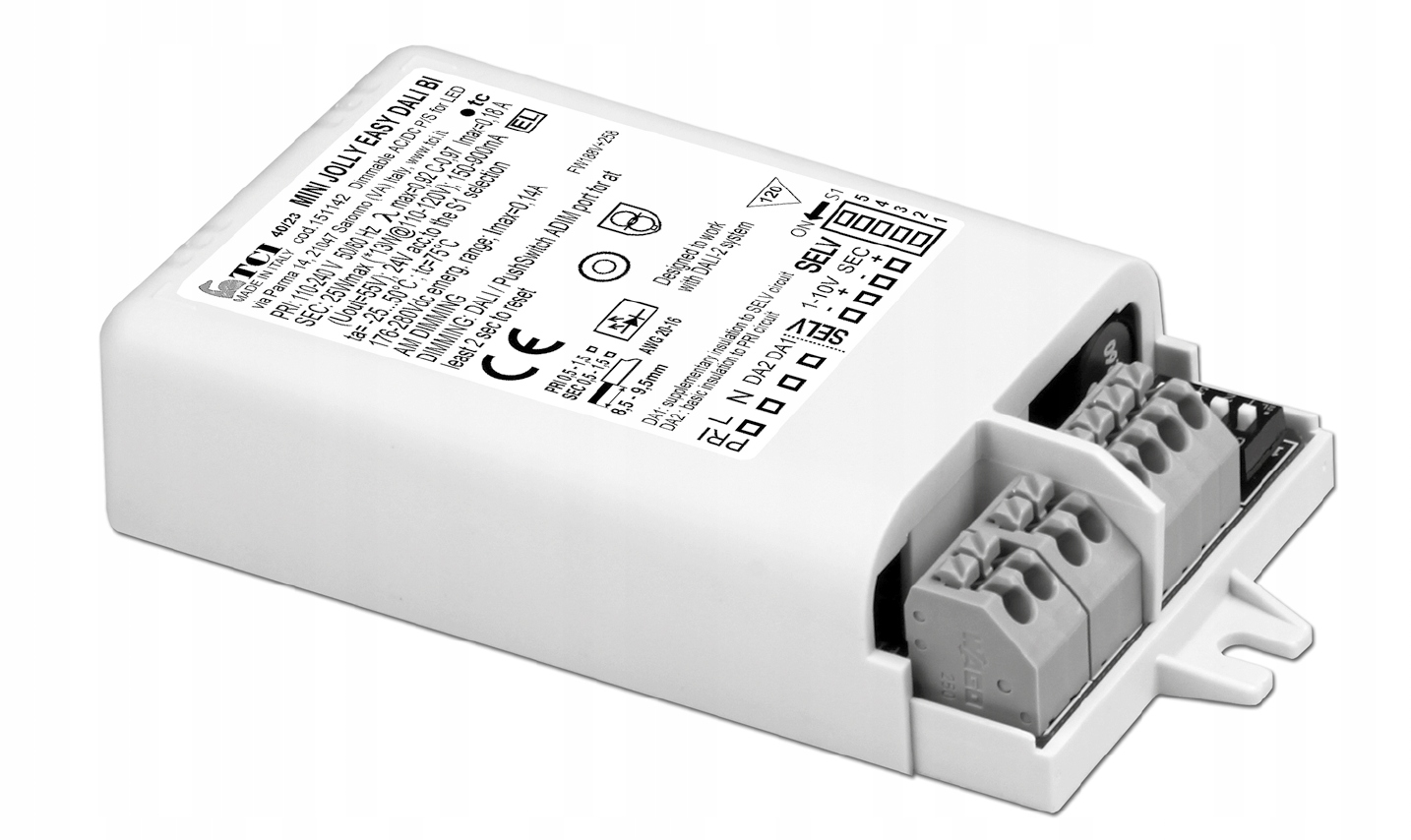

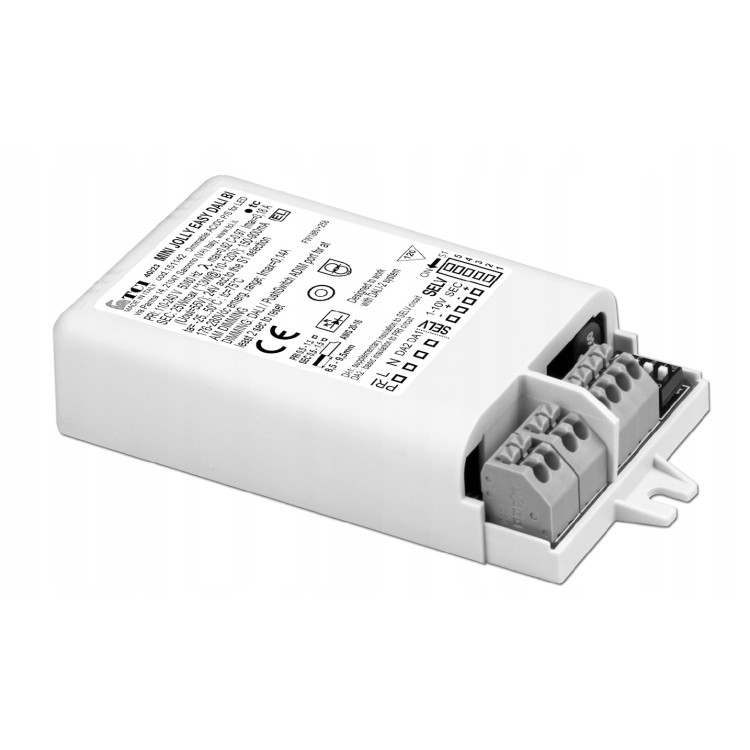

MINI JOLLY EASY DALI BI LED Power Supply 25W 900mA
Built-in power supply:
- Multi-current with DIP switch for output current selection.
- Independent IP20 rating, for indoor use.
- Class II protection against electric shock from direct or indirect contact.
- Class I protection against electric shock from direct or indirect contact.
- Active power factor corrector.
- Current regulation ±5%, including temperature fluctuations.
Specifications:
- Power: 25W
- Nominal voltage: 110 ÷ 127 V; 220-240 V
- Output voltage: 55 V
- Current: 150-900 mA
- Frequency: 50-60 Hz
- Operating range: 99-264 V AC, 176-275 V DC
- iTHD: ≥ 10%
- Output current ripple: ≤ 3%
- λ max. Power Factor: 0.97
- Housing: IP20
Protection:
- against overheating and short circuits;
- against mains voltage surges;
- against overloads.
- Thermal protection = C.5.a.
Certificates:
CSA-C22.2 no. 223, C, N 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384, EN 62386-101, EN 62386-102, EN 62386-207, EN 62386-251, EN 62386-252, EN 62386-253, UL1310, UL 8750, SA-C22.2 n° 250.13, E
