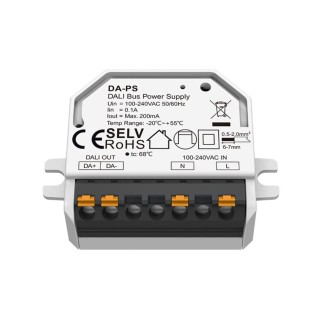

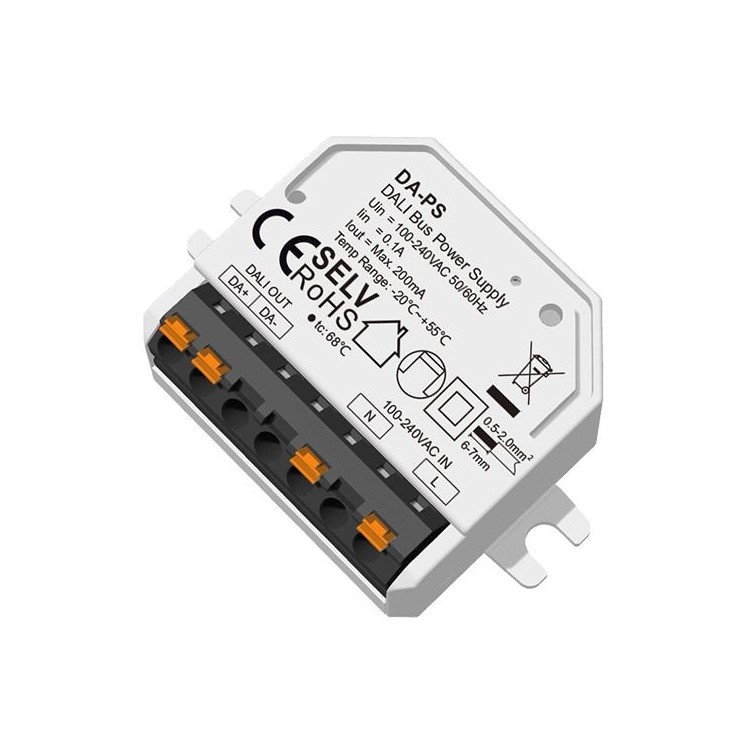

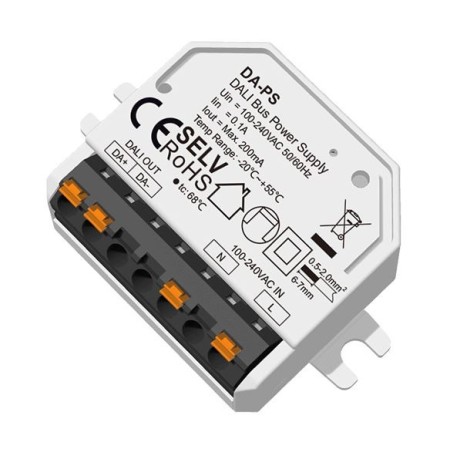

SkyDance DA-PS DALI Bus Power Supply 100–240VAC / 200mA
The SkyDance DA-PS is a compact DALI bus power supply designed to power the DALI communication line in professional lighting control systems. It provides a stable 16V DC voltage and a maximum current of 200mA, ensuring the correct operation of controllers, sensors, and control panels connected to the DALI bus.
The power supply operates over a wide input voltage range of 100–240VAC, making it suitable for both residential and commercial installations. Built-in short-circuit protection increases system safety and reliability, while compliance with the SELV (Safety Extra-Low Voltage) standard ensures safe operation of the control bus.
The DA-PS's compact housing and low power consumption make it ideal for distribution boards, control cabinets, and DALI systems requiring a separate bus power supply.
Dedicated DALI bus power supply
Wide input voltage range 100–240V AC
Output 16 V DC / max. 200 mA
Short-circuit protection
SELV compliant
Compact design
Stable and safe DALI system operation
Technical specifications:
Input voltage: 100–240 VAC
Input current: 0.1 A
Output voltage: 16 V DC
Output current: max. 200 mA
Operating temperature: -20°C ~ +55°C
Maximum housing temperature: +68°C
Protection rating: IP20
DA-PS
