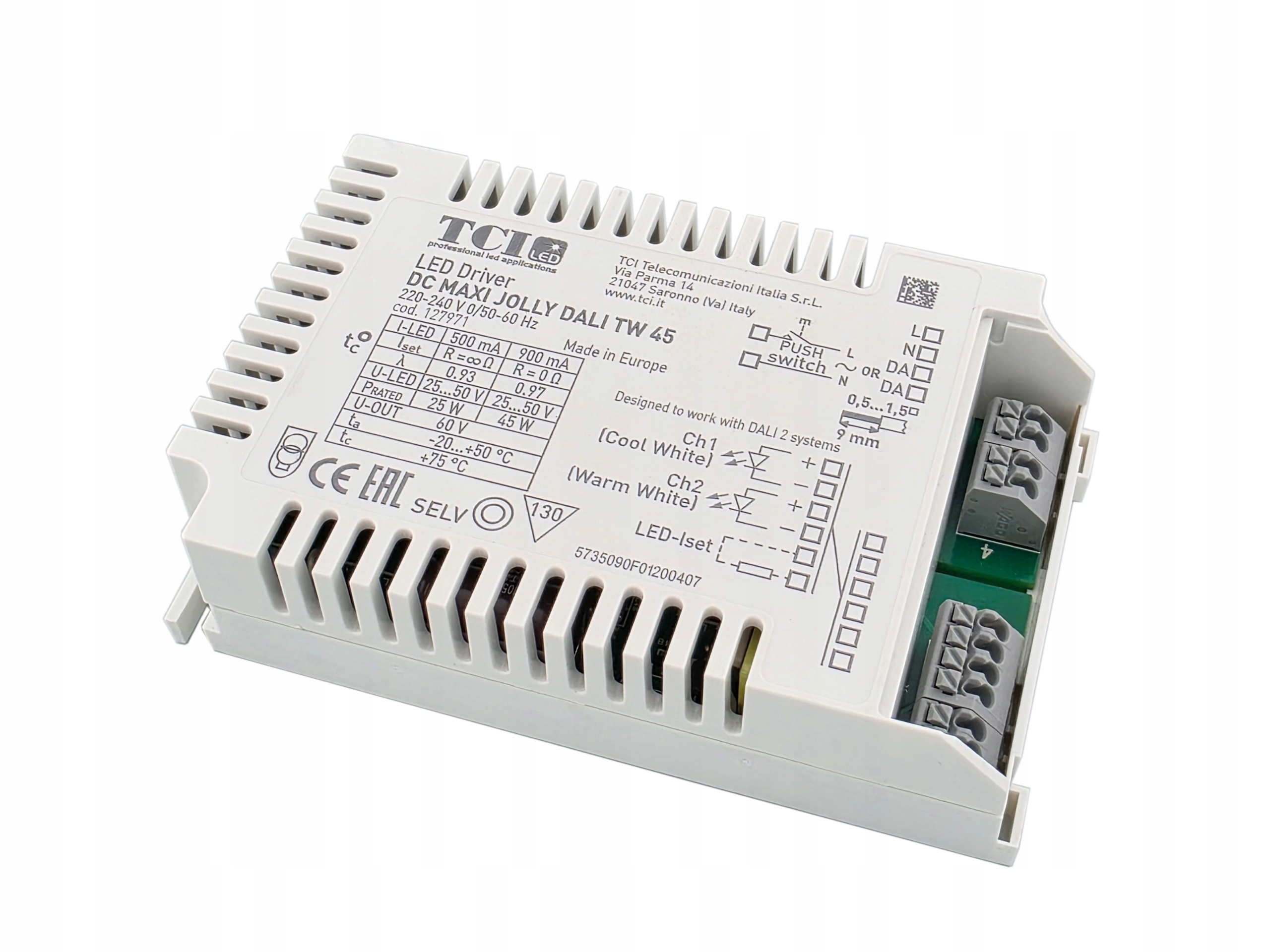

DC MAXI JOLLY DALI TW LED Power Supply 45W 900mA
In-wall power supply:
- Multi-current power supply with 2 channels for controlling the color temperature of TW LED modules.
- Compliant with DALI Type 8. One DALI address for 2 output channels for color temperature control.
- Suitable for lighting fixtures with Protection Class I and II.
- Independent IP20 driver for indoor use.
- Active power factor corrector.
- Current regulation ±5%, including temperature fluctuations.
Specifications:
- Power: 25-45 W
- Rated voltage: 220 ÷ 240 V
- Output voltage: 25-60 V
- Current: 500-900 mA
- Frequency: 50-60 Hz
- Operating range: 198 ÷ 264 V AC
- iTHD: ≥ 15%
- Output current ripple: ≤ 3%
- λ max. Power Factor: 0.97
- Housing: IP20
Protection:
- against overheating and short circuits;
- against mains voltage surges;
- against overloads.
- Input fuse protection.
- Thermal protection = C.5.a.
Certificates:
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384, EN 62386-101, EN 62386-102, EN 62386-207, EN 62386-209
