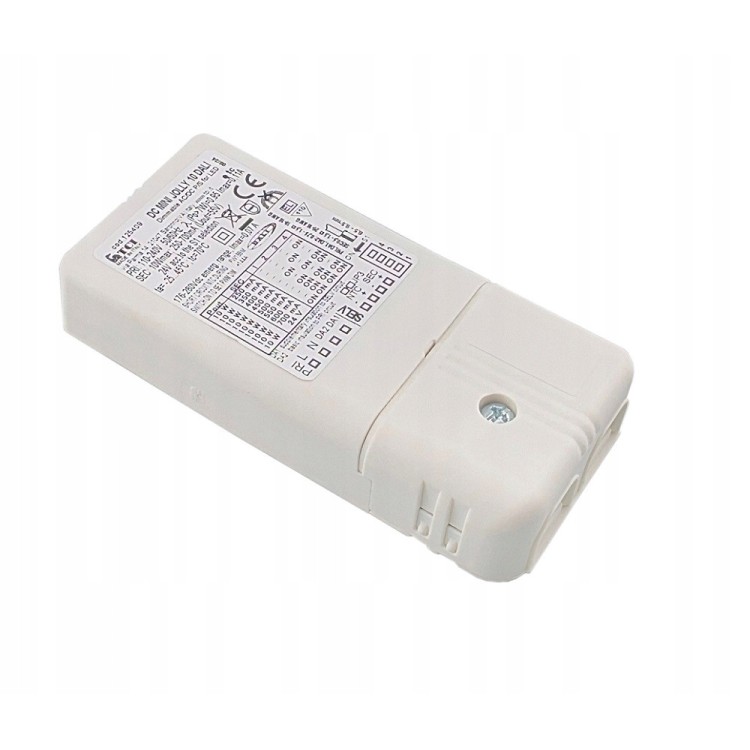

DC MINI JOLLY DALI 10 LED Power Supply 125409
LED power supply:
- Constant current,
- dimmable,
- supporting the DALI protocol
- DIP-SWITCH function for output current selection.
Technical parameters:
- Output power: 1 ÷ 10 W
- Rated voltage: 110 ÷ 127 V / 220 ÷ 240 V
- AC voltage range: 99 ÷ 264 V
- DC voltage range: 176 ÷ 280 V
- Power frequency: 50 – 60 Hz
- Power Factor (λ): 0.95 (at Pout > 7 W)
- Efficiency: > 81%
- Output ripple: ≤ 3%
- Standby current consumption: ≤ 0.5 W
- Maximum quantity for CB B16A: 50 pcs.
- Discharge current: 5 A (50 µsec)
- Weight: 106 g (3.7 oz)
Features:
- Multipotential power supply with DIP-SWITCH for output current selection
- Independent power supply with IP20 rating, intended for indoor use
- Class II protection against electric shock for direct and indirect contacts
- Supports DALI interfaces with scenario and lighting group memory
- Current regulation ±5%, including temperature changes
- Input and output terminals located on the same side (cable cross-section up to 1.5 mm² / AWG15)
- Connectors for cable diameters: PRI 5-8 mm / SEC 3-5 mm
- Screw hole mounting possible
Protection:
- Against overheating and short circuits
- Against voltage surges
- Against overloads
- Thermal protection: C.5.a
Certifications:
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384, EN 62386-101, EN 62386-102, EN 62386-207, UL 1310
