The MEAN WELL HDR-30-24 switching power supply, designed for DIN rail mounting, features a 36W power output and a stable 24V DC output voltage. This device offers an output voltage regulation range from 21.6 to 29V DC, allowing you to adapt the power supply to the specific technical requirements of various electronic devices.
The power supply features a terminal block for easy connection, allowing for quick and trouble-free installation. High efficiency of 89% ensures efficient operation, minimizing energy loss, which is important for economic and environmentally friendly use. Low no-load power consumption of less than 0.3W further enhances its energy efficiency, especially in standby mode.
The power supply is designed to operate in extreme temperature conditions from -30 to 70°C, enabling it to function in a wide range of industrial and commercial applications. Its compact dimensions of 35x90x54.5mm make it ideal for applications where mounting space is limited.
The HDR-30-24 is also equipped with advanced overload (OPP), overvoltage (OVP), and short circuit (SCP) protections, which protect connected devices from unforeseen operating conditions. These protections make the power supply a highly reliable power source for a variety of electronic applications, both in home and industrial environments.
Specifikation:
Manufacturer: MEAN WELL
Power Supply Type: Switched
Power Supply Type: DIN Rail
Power: 30W
Maximum Power: 36W
Output Voltage: 24V DC
Output Voltage Range: 21.6...29V DC
Output Current: 1.5A
Electrical Connection: Terminal Block
Mounting: DIN Rail
External Dimensions: 35x90x54.5mm
Number of Outputs: 1
Operating Temperature: -30...70°C
Manufacturer Series: HDR-30
No-Load Power Consumption: <0.3W
Efficiency: 89%
Protection:
OPP overload protection, OVP overvoltage protection, SCP short circuit protection
HDR-30-24
32 Items
No customer reviews for the moment.
error
Your review appreciation cannot be sent
feedback
Report comment
Are you sure that you want to report this comment?
check_circle
Report sent
Your report has been submitted and will be considered by a moderator.
error
Your report cannot be sent
Write your review
check_circle
Review sent
Your comment has been submitted and will be available once approved by a moderator.
Zasilacz LED DAMIK DIN150 24V
6.25A 150W na szynę DIN profesjonalny zasilacz do taśm LED
Nowoczesny, solidny zasilacz LED marki DAMIK montowany na szynie DIN – idealny do zasilania taśm LED, modułów LED oraz innych urządzeń wymagających...
DIN Rail Power Supply
MEAN WELL 30W 12V 2A
Product Features:
Supply voltage: 85-264VAC or 120-370VDC
Mounts on a TS35/7.5 or 15 DIN rail
Operating temperature range: -30 to +70°C
No-load power consumption: <0.3W
Adjustable output voltage...
DAMIK SLS 24-24 Slim LED Power Supply
24V 24W (1A), 100-240V
DAMIK's modern SLS 24-24 Slim LED power supply is an efficient and compact power source for LED strips and other 24V DC devices. Its slim and narrow design (only 1.8 cm in height and...
DIN Rail Power Supply
MEAN WELL 100W 12V 7,1A
Product Features:
Supply voltage: 85-264VAC or 120-370VDC
Mounts on a TS35/7.5 or 15 DIN rail
Operating temperature range: -30 to +70°C
No-load power consumption: <0.3W
Adjustable output voltage...
DAMIK Round 24-24 LED Strip Power Supply
In-wall 24V 24W 2A, Round IP67
The professional DAMIK Round 24-24 LED strip power supply is a compact, waterproof power source for LED strips and other 24V DC devices. Its round housing, 5cm in diameter...
Mean Well HDR-60-24 Power Supply
DIN Rail Power Supply 24V 60W 2.5A
Supply voltage: 100-240V AC
Power output: 2.5A / 24V DC
Output voltage regulation: 21.6V ~ 29V DC
Nominal total output current: 2.5A
Power supply power: max. 60W
Efficiency:...
Zasilacz LED TCI LCV 60W 24V 2,5A
Zasilacz do zabudowy:
Niezależny Zasilacz IP20, do użytku wewnątrz pomieszczeń.
Klasa ochrony II przed porażeniem prądem elektrycznym w przypadku bezpośredniego lub pośredniego kontaktu.
Moc: 60 W...
Sterownik LED TCI LCV 90W 24V 3,75A
Sterownik do zabudowy:
Niezależny sterownik IP20, do użytku wewnątrz pomieszczeń.
Klasa ochrony II przed porażeniem prądem elektrycznym w przypadku bezpośredniego lub pośredniego kontaktu.
Moc: 90 W...

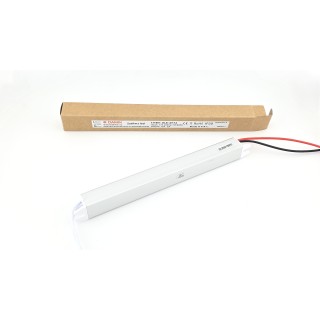

DAMIK SLS 24-12 Slim LED Power Supply
12V 24W (2A), 100-240V
The modern DAMIK SLS 24-12 Slim LED power supply is an efficient and compact power source for LED strips and other 12V DC devices. Its slim and narrow design (only 1.8 cm in height and...
DAMIK Round 24-12 LED Strip Power Supply, 12V, 24W, 2A, Round IP67
The DAMIK Round 24-12 professional flush-mount LED power supply is a compact, waterproof power source for LED strips and other 12V DC devices. Its 5cm diameter and 2.3cm thick...
Zasilacz LED TCI DC 70W 24V 2,9A SLIM R DALI
Zasilacz do zabudowy:
Niezależny Zasilacz IP20, do użytku wewnątrz pomieszczeń.
Może być stosowany do sprzętu oświetleniowego w klasie ochrony I.
Moc: 70 W
Napięcie znamionowe: 220 ÷ 240V...
DAMIK Round 30-24 LED Strip Power Supply
In-wall 24V 30W 1.25A, Round IP67
The professional DAMIK Round 30-24 LED strip power supply is a compact, waterproof power source for LED strips and other 24V DC devices. Its round housing, 5cm in diameter...
Zasilacz LED DAMIK DIN100 24V
4,17A 100W na szynę DIN profesjonalny zasilacz do taśm LED
Nowoczesny, solidny zasilacz LED marki DAMIK montowany na szynie DIN – idealny do zasilania taśm LED, modułów LED oraz innych urządzeń wymagających...

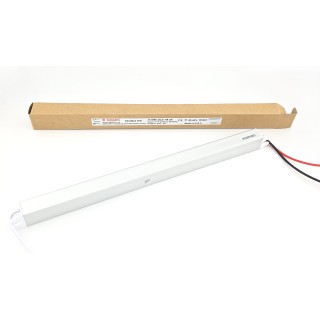

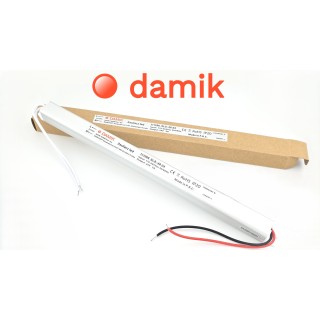

DAMIK SLS 48-24 Slim LED Power Supply
