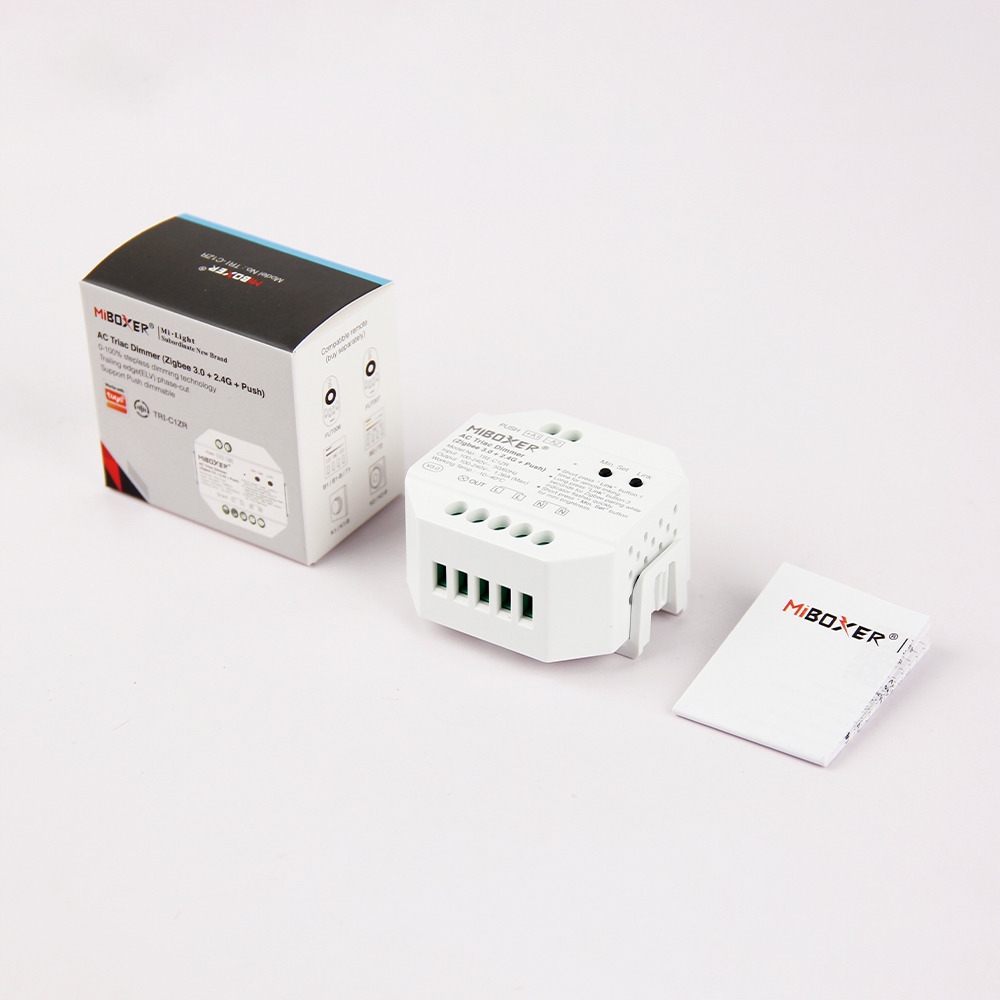

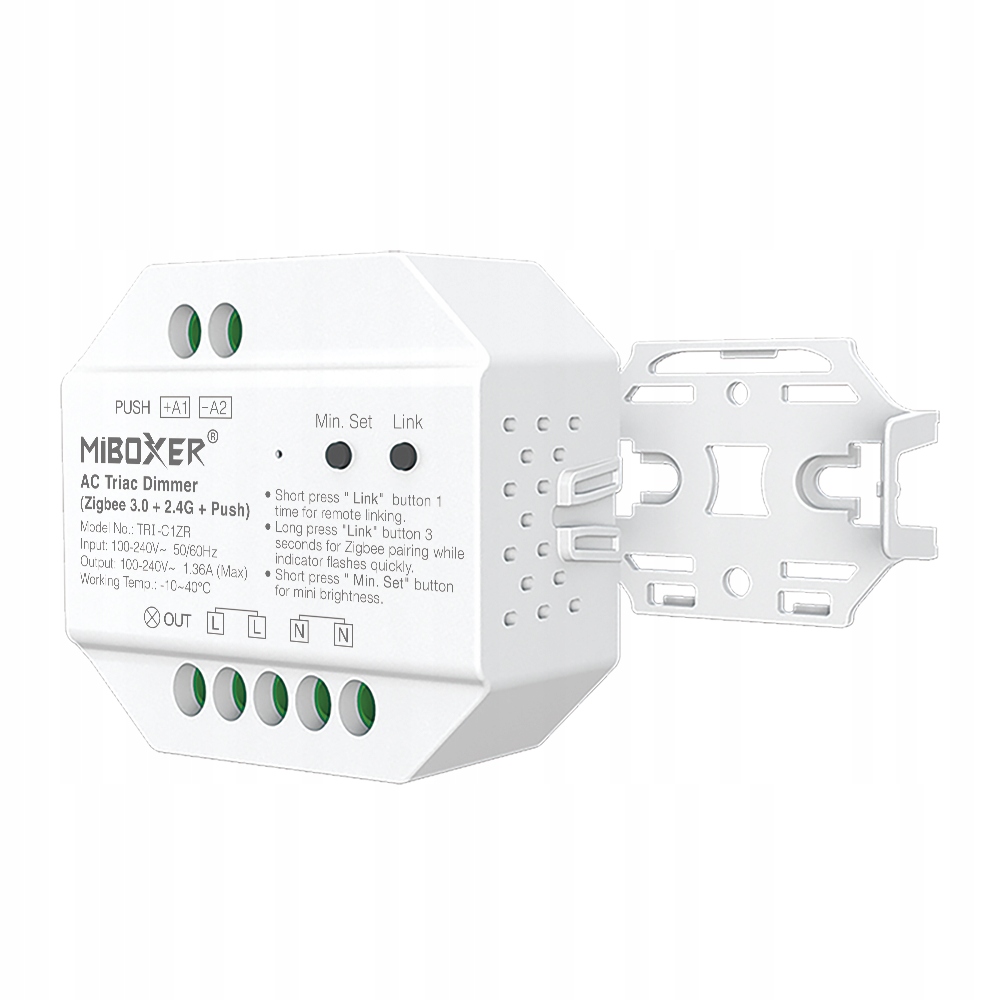

MiBoxer TRI-C1ZR is an advanced phase dimmer (Triac) for intelligent control of LED lighting, incandescent lamps and halogen lamps. It supports three control modes: Zigbee 3.0, 2.4 GHz RF (MiBoxer/Mi-Light remote control) and PUSH button, which allows it to be easily adapted to various installations and smart home systems.
Thanks to Zigbee 3.0 technology, the dimmer is compatible with popular automation systems such as Tuya, Amazon Alexa or Google Home. Smooth dimming in the range of 0-100% allows you to create the right mood in any room, and automatic transmission of the RF signal ensures stable operation and a large control range.
Key features:
Control: Zigbee 3.0 + 2.4 GHz RF + PUSH
Smooth dimming 0-100% (flicker-free)
Support Tuya/Smart Life app and voice control (Alexa, Google Home)
Compatible with MiBoxer/Mi-Light 2.4G remote controls and panels
Automatic RF signal transmission (mesh)
Built-in protections: overload, thermal
Compact housing, easy installation in a box
Technical specifications:
I/O voltage: AC 100-240V ~ 50/60Hz
Max current: 1.36 A
Power: 150W @ 110V / 300W @ 220V
RF control range: up to 30 m
Operating temperature: –10 °C ~ +40 °C
Degree of protection: IP20
Application:
Dimmer for LED lamps, incandescent lamps and halogen lamps
Smart home based on Zigbee 3.0
Lighting at home, office, hotel or restaurant
Manual, wireless or voice control
TRI-C1ZR
