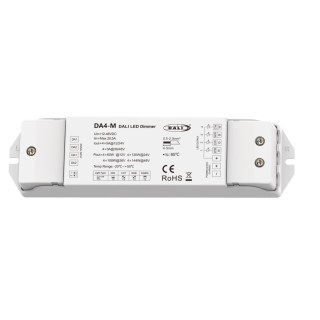

4-Channel DALI Dimmer 4x5A 12-48VDC (DT6/DT8) Constant Voltage
The SkyDance DA4-M is a professional 4-channel Constant Voltage LED driver designed for DALI systems. The device uses a single DALI address and supports both DT6 (dimming) and advanced DT8 modes: CCT, RGB, and RGBW color temperature control, making it a universal solution for modern lighting installations.
The controller is DALI-2 certified and fully compliant with IEC 62386-102/207/209 standards, allowing it to seamlessly integrate with DALI devices from other manufacturers. The DALI address is automatically assigned by the DALI master controller, significantly simplifying system configuration.
The DA4-M offers 4 independent channels with a load capacity of up to 5A each, supporting voltages from 12–48V DC.
Digital PWM dimming with a logarithmic DALI dimming curve ensures smooth, stable brightness control without flicker.
Key Features:
- 4-channel Constant Voltage LED driver
- 1 DALI address
- DT6 and DT8 (CCT / RGB / RGBW) support
- DALI-2 certification
- IEC 62386 compliance
- Automatic DALI address assignment
- Smooth dimming from 0–100%
- Logarithmic DALI dimming curve
- Digital PWM dimming
Technical Specifications:
- Model: DA4-M
- Input Voltage: 12–48 V DC
- Input Current: 20.5 A
- Output Voltage: 12–48 V DC
- Output Current:
- 4 × 5 A @ 12/24 V
- 4 × 3 A @ 36/48 V
- Output Power:
- 4 × 60 W @ 12 V
- 4 × 120 W @ 24 V
- 4 × 108 W @ 36 V
- 4 × 144 W @ 48 V
- Output Type: Constant Voltage (CV)
- Input Signal: DALI
- Dimming Range: 0–100%
- PWM Frequency: 2000 Hz (default)
