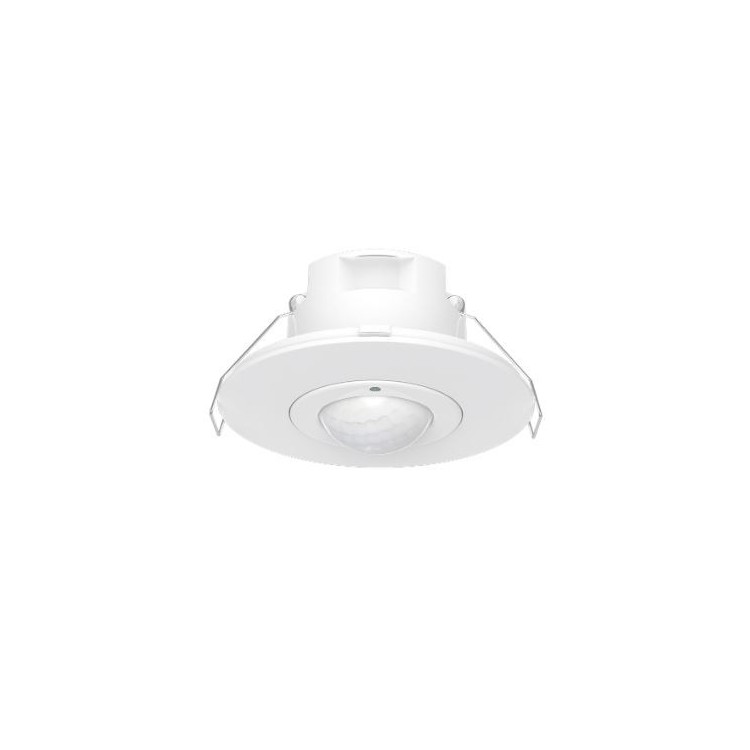

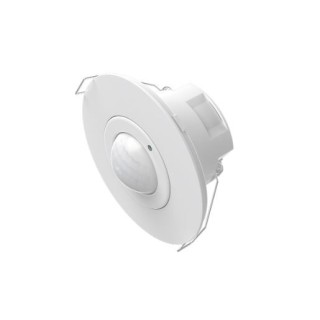

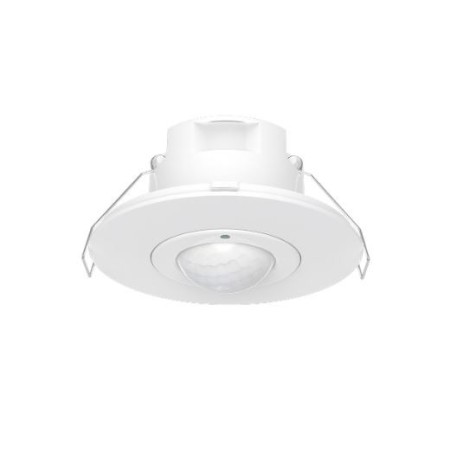

Merrytek MSA017D IR Low-Mount PIR Motion Sensor (DALI2.0 Version)

Nisko montowany czujnik ruchu PIR Merrytek MSA017D IR (wersja DALI2.0)

Features:

PIR motion detection

0 output

Complies with DALI standards 101, 103, 303, and 304

Daylight sensor detection available

Detection area: The delay time can be remotely set

Maximum detection range: 6-10 m diameter

Maximum mounting height: 6 m

Motion detection is strongly recommended for warehouses, workshops, and lobbies

Flush and surface mounting available

Input/Output:

Input voltage: 9.5-22.5 V DC (DALI BUS power supply)

Operating current: Maximum 20 mA

Power consumption: ≤0.5 W @12/24 V DC

Output signal: DALI 2.0

Dimensions:

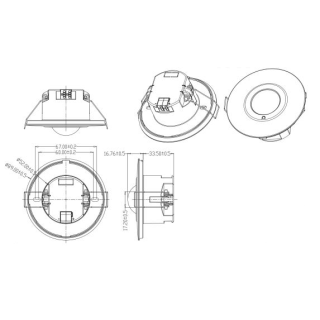

Product size: 89 mm diameter x 34 mm height

Interface connections: 4-pin terminal

Nisko montowany czujnik ruchu PIR Merrytek MSA017D IR (wersja DALI2.0) Marka bez marki                     Nisko montowany czujnik ruchu PIR Merrytek MSA017D IR (wersja DALI2.0) Stan opakowania oryginalne

Sensor Parameters:

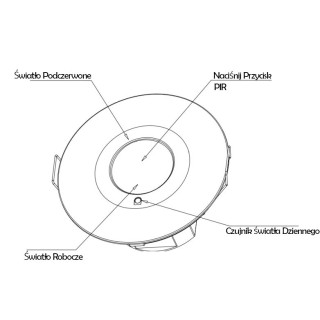

Function: PIR motion detection + daylight sensor

Detection Area: DIP or Remote Settings: 100% / 75% / 50% / 25%

Waiting Time: MH10 Remote Control: 5s / 30s / 1min / 3min / 5min / 10min / 20min / 30min

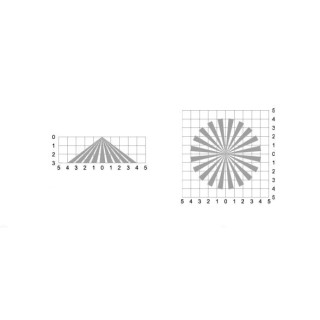

Beam Detection Range (based on 100% sensitivity): 2.5 - 4m based on a mounting height of 3m

Mounting Height: Typical value 2-6m: 3m

Nisko montowany czujnik ruchu PIR Merrytek MSA017D IR (wersja DALI2.0) Typ czujnik

 Nisko montowany czujnik ruchu PIR Merrytek MSA017D IR (wersja DALI2.0) Zawiera baterie nie

Nisko montowany czujnik ruchu PIR Merrytek MSA017D IR (wersja DALI2.0) Kolor biały

MSA017D IR
